Z-Axis Power Feed for Milling Machine,460 in-lb Torque, 0-200RPM Table Milling Machine Power Feed 110V,for Bridgeport and Other Knee Type Mills with a 5/8" Diameter Shaft on the End

BASIC PARAMETERS

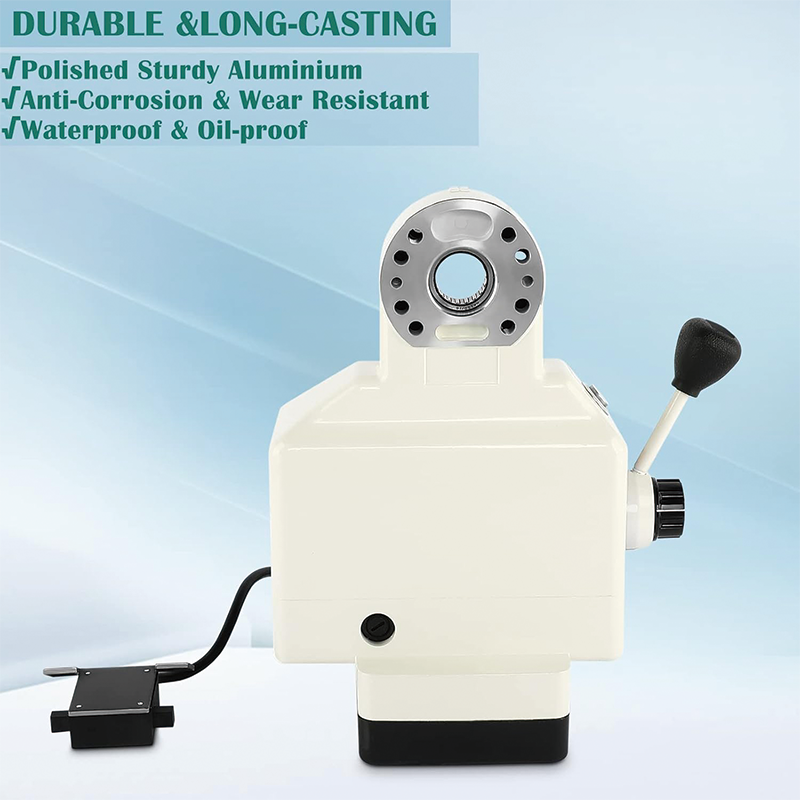

Z-Axis power feed is made of aluminuml;Power Parameter:90Watt,110V input voltage,50/60Hz,single phase;Rotate Speed:0-200 RPM.Max Torque:450in-lb;Max feed rate: 650mm/min; Max return speed: 850mm/min.

PORTABLE AND EASY TO INSTALL

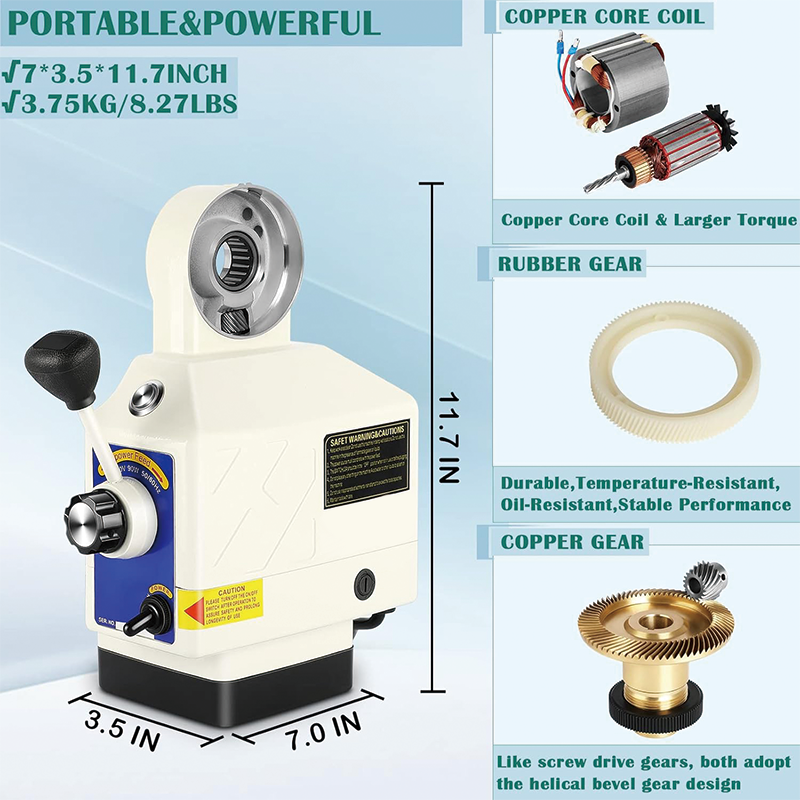

This power feed for milling machine is compact and portable.Weight: 3.75kg/8.27lb, Size: 7*3.5*11.7inch. And whether it is for a novice or a skilled operator, it is very easy to install this power feed according to the instruction and online video or by yourself.

STABLE AND EFFICIENT

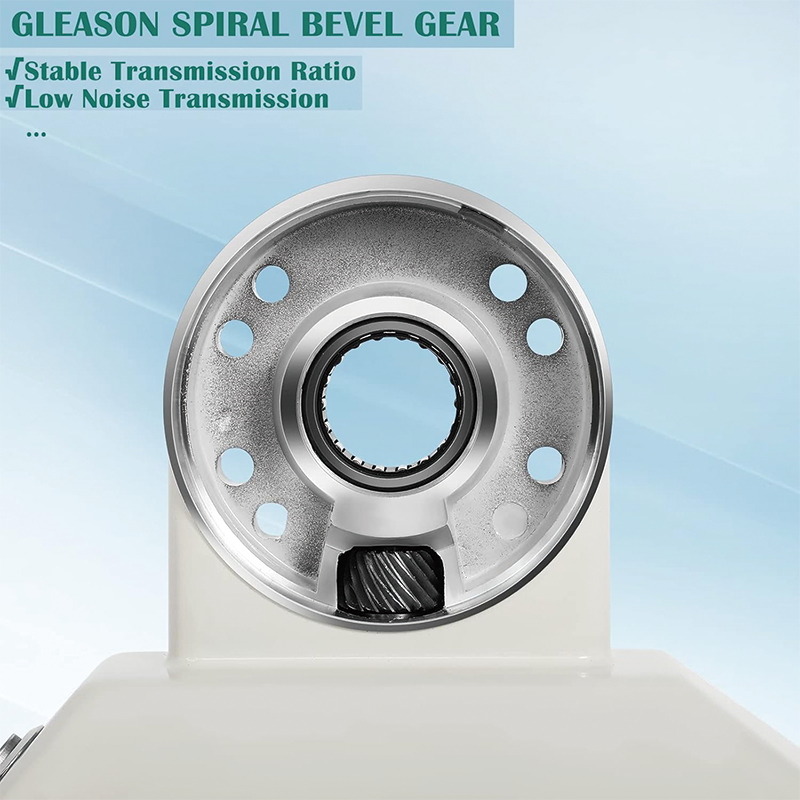

This power feed adopts Gleason Spiral Bevel Gear with advantages of stable transmission ratio,low transmission noise,high transmission efficiency and high bearing capacity.And when fast transmission, if the tool collides with the workpiece or reverses instantaneously, the special safety device protects the transmission plastic gear and electronic parts from damage.

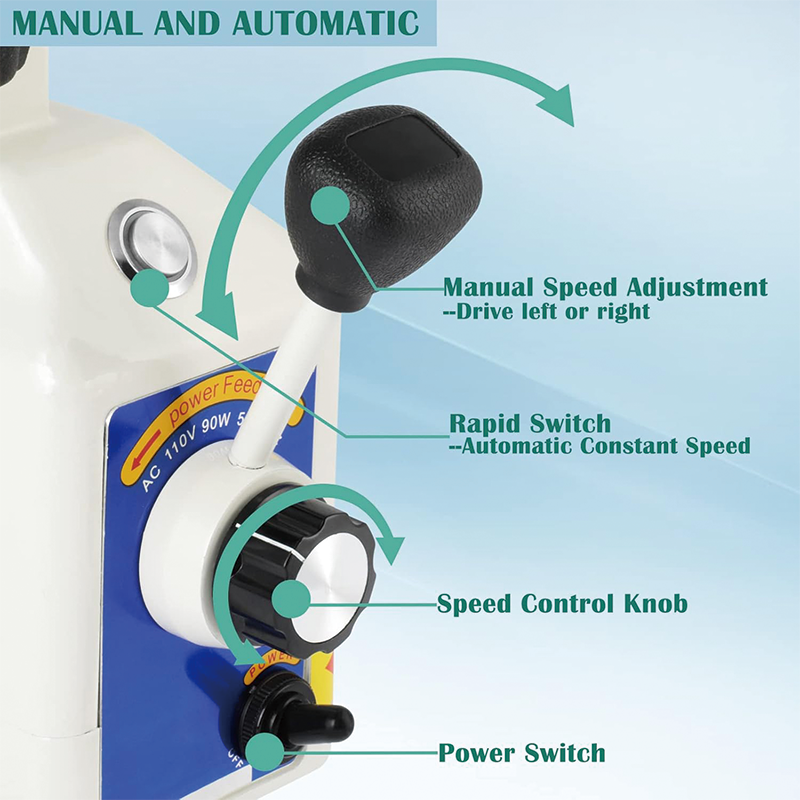

AUTOMATIC AND MANUAL CONTROL

You can set this power feed to work at automatic constant speed to free your hands or work by manually adjusting the speed control knob to do more precise milling work.And this multifunctional milling machine power feed can work with excellent speed control in the entire range according to your needs.

WIDE APPLICATION

This milling table power feed fits some vertical knee type mills with the same mounting pattern and a 5/8" diameter shaft on the end,But it will NOT fit mills with a different mounting pattern or different sized leadscrews like powermatic and some other odd sized machines, so please make sure yours is the typical Bridgeport type as mentioned above.
