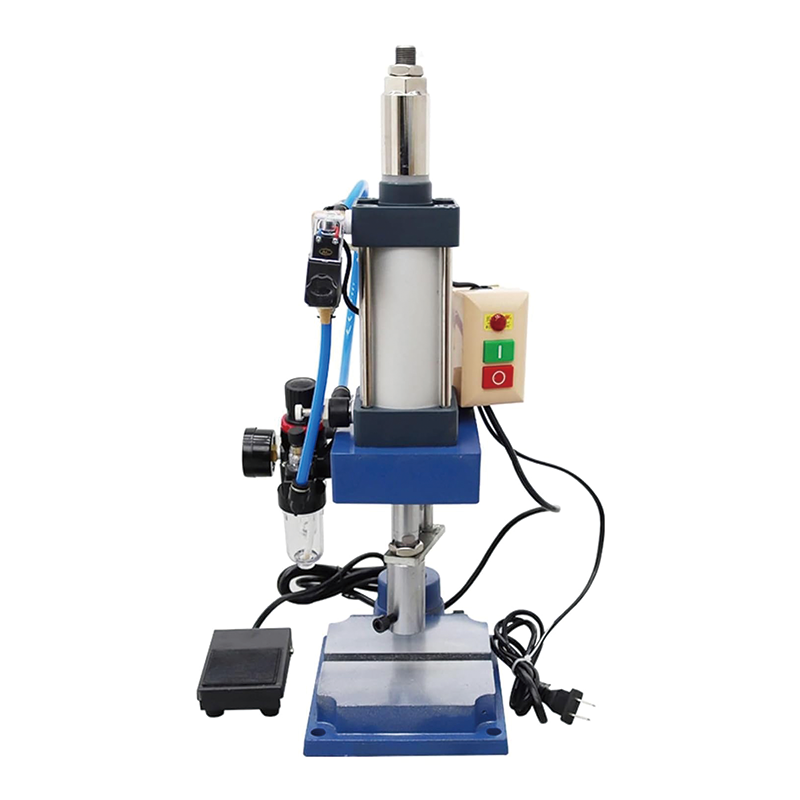

Vertical Pneumatic Punch Press Machine 110v Mute Operation 16mm Die Hol,Pneumatic Punch Press Machine 440LB/200KG Pressure, Desktop Punching Press Machine,Cylinder Stroke Pneumatic Press

Product Description

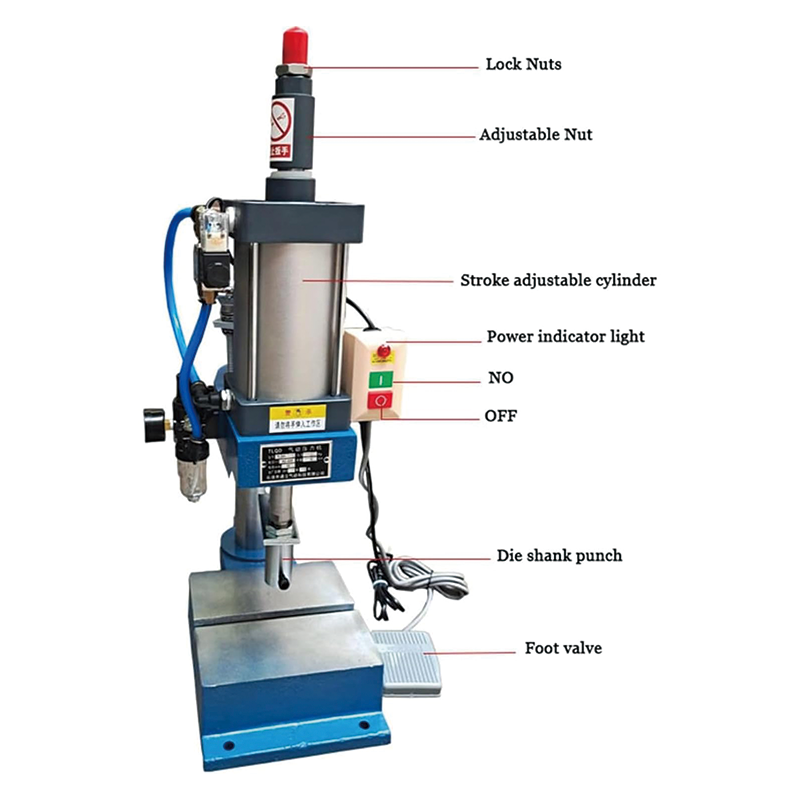

Highly sealed cylinders

Cylinder diameter 2.5" / 63 mm, maximum stroke 2.95" / 75 mm, adjustment range 2" / 50 mm. / 75 mm, adjustable range 2" / 50 mm. Bidirectional seal design for good sealing and high power transmission.

Manual push button and foot switch

Use the foot switch to manually control the press to start work Double protection device Safe and reliable operation Foot switch Cable length 6 ft. 18 m, easy to use.

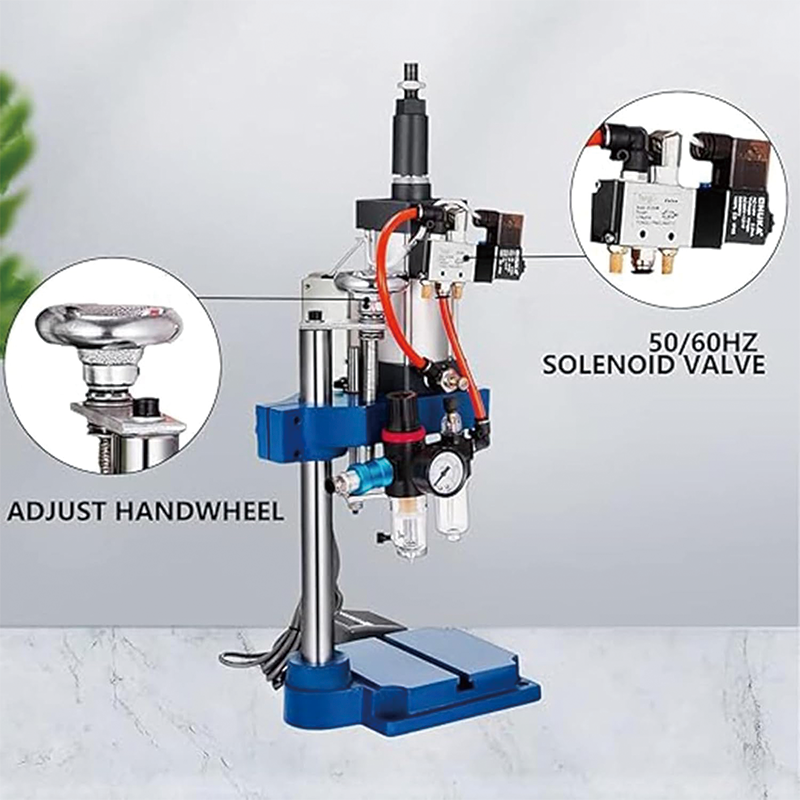

Precise design

Rotating height adjustment handle for easy height adjustment. Solenoid valves are precise and sensitive for long-term and high-frequency operation.

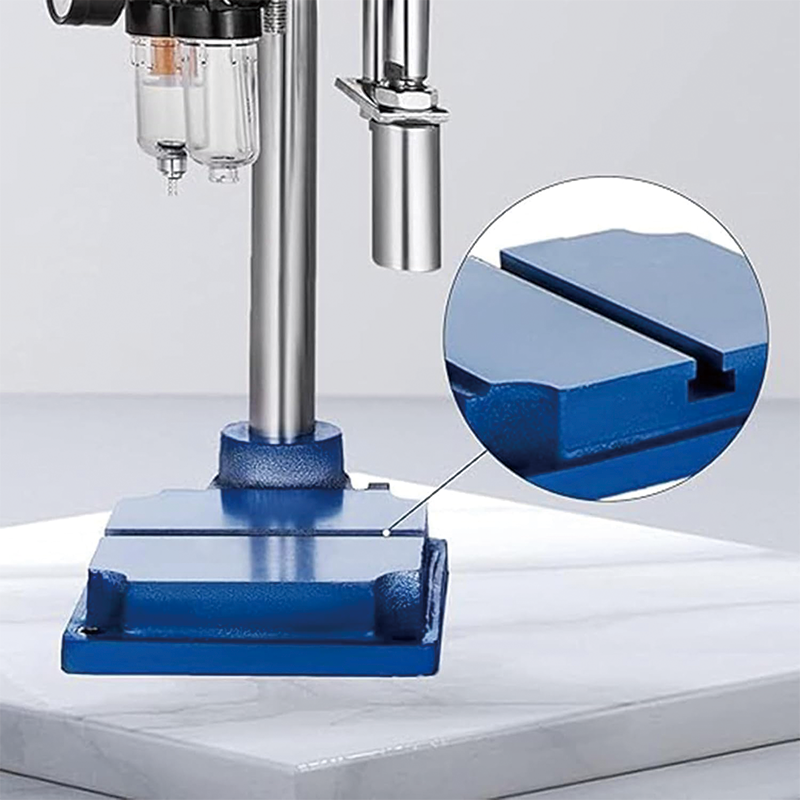

T-slot base

The pneumatic presses feature a 9" x 6" HT200 cast iron T-slot base for durability and solid mounting. Easy installation of various shapes, very convenient to assemble and disassemble.

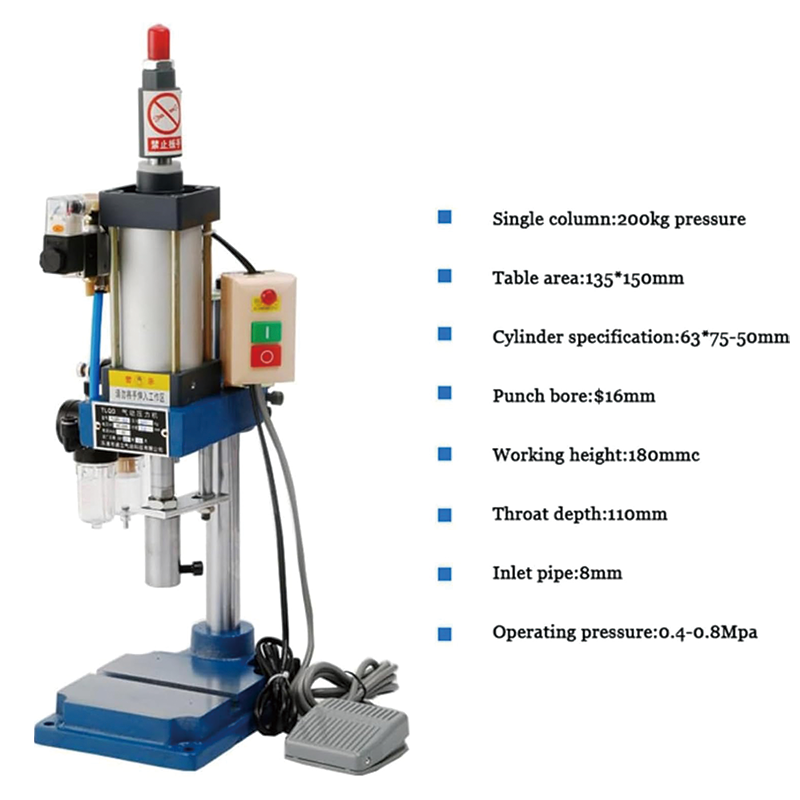

Specification

Power supply:Pneumatic power supply
Actual performance: Approximately 80% of theoretical performance

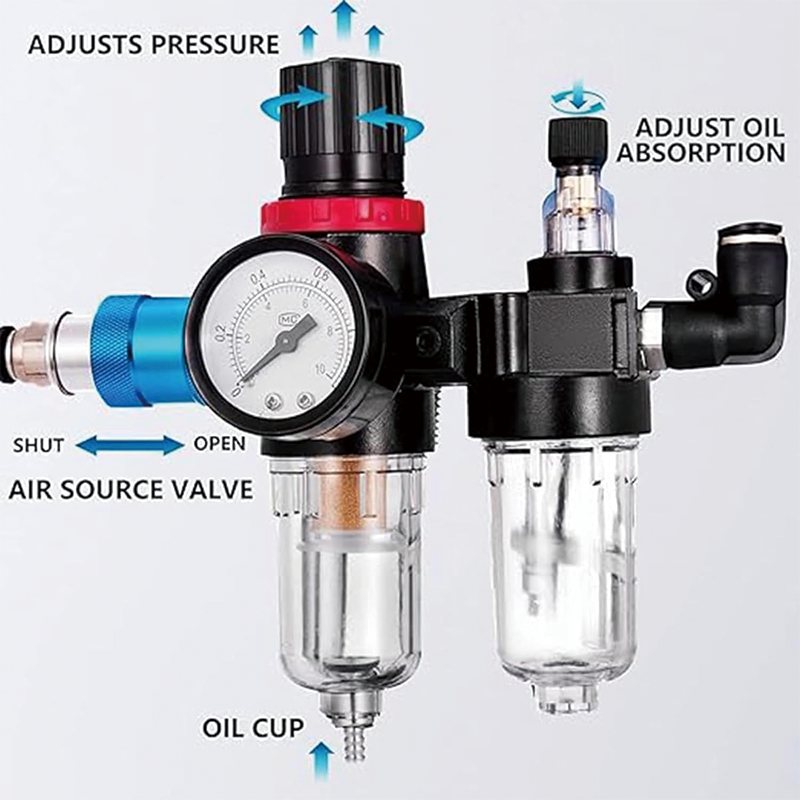

Working pressure: 0.4-0.7 MPa (4-7 kg/cm2, or 110-140 PSI)
Theoretical output pressure: 1121-1962 Newton / 114-200 kg
Mold hole diameter: 16mm (0.63 inch)
Passage depth: 135 x 150 mm (5.3" x 5.9")
Stroke 5.9" x 5.3" / 150 x 135 mm
Air tube size: 0.31" x 0.2" / 8 x 5mm
Adjustable cylinder size: 2.5" x 2.95" / 63 x 75mm
Packaging dimensions: 26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm
