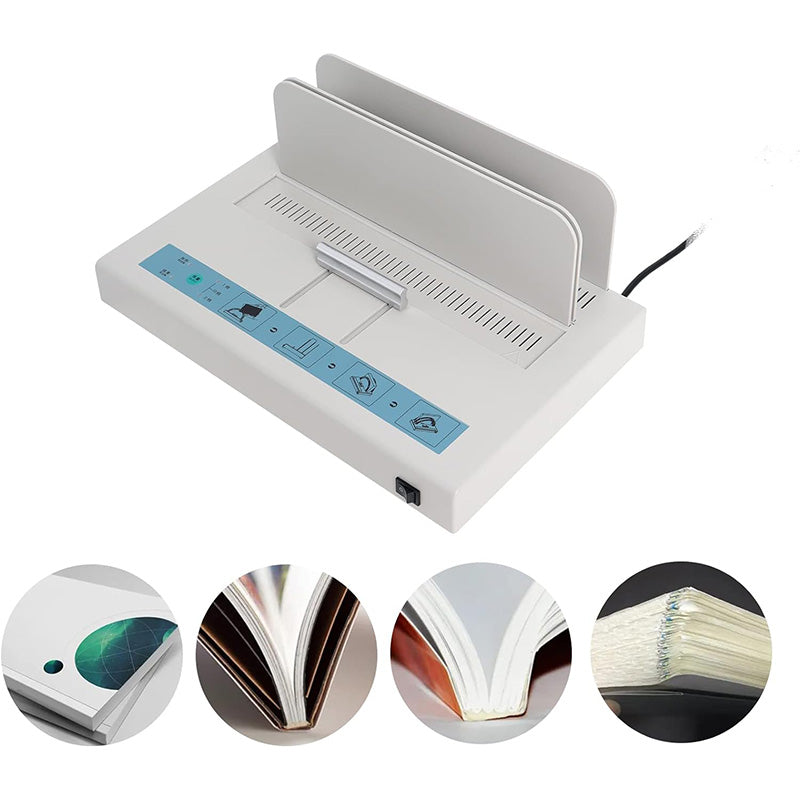

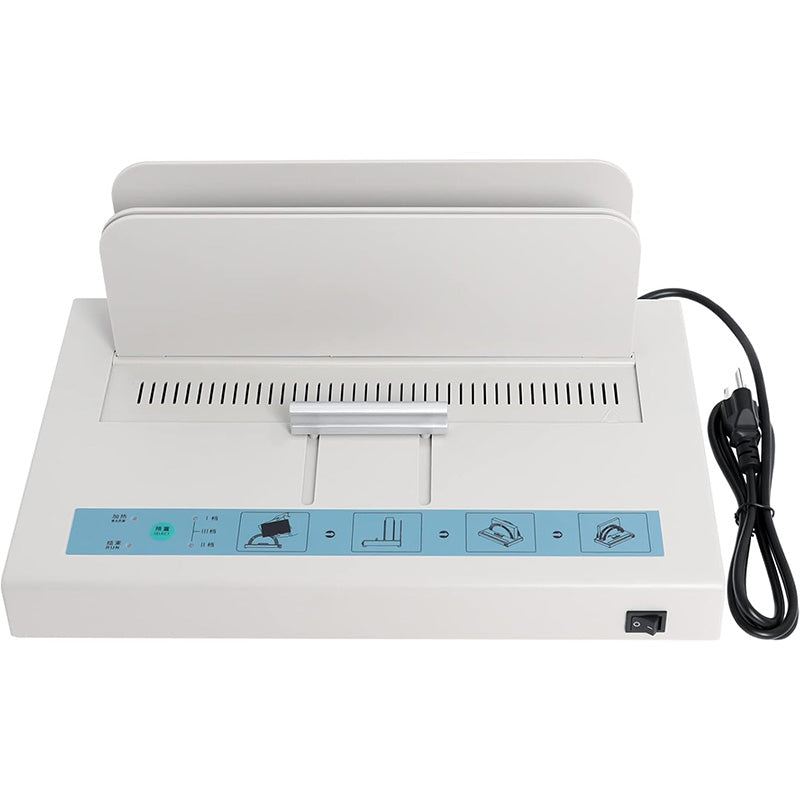

Thermal Binding Machine 500 Sheets Capacity A3 A4 A5 Document Heat Binder Book Binding Machine

50mm Extra Thick Binding

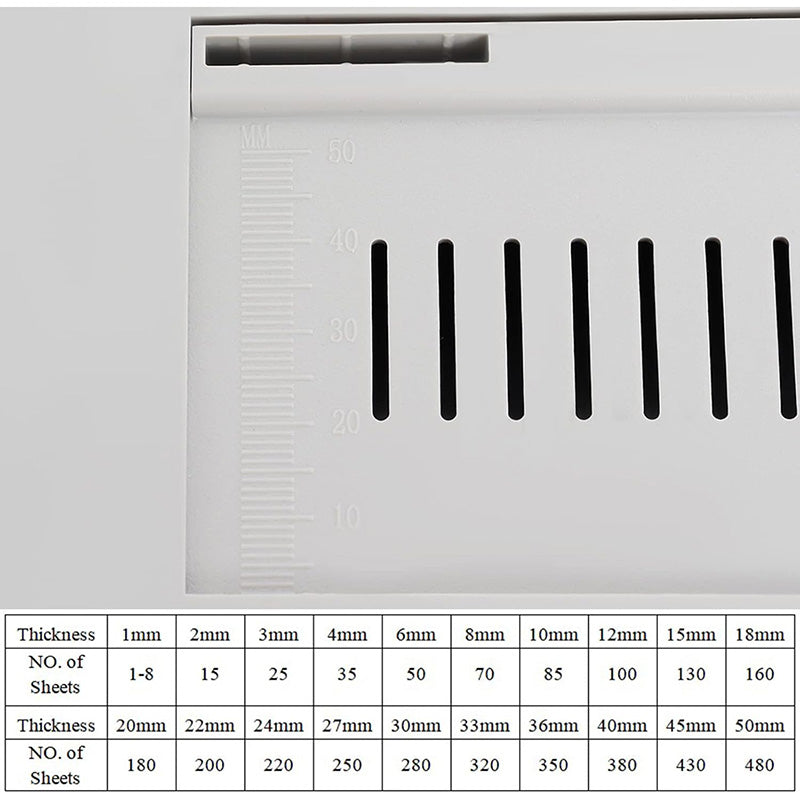

Any thickness ranging from about l to 500 sheets of paper.

Wide Application
This binding machine can be used to binding contracts, reports, quotations, insurance policies, visa documents, accounting books and financial vouchers.

New concept for electronic binding
Applied CPU control system, PTC ceramic heating & infrared light detecting, safe and reliable, Concern Free Binding.

Hand Press
Prevent first and last sheet from falling off.

High Precision Overtime Protection
Free of and worry about redundant glue, saving energy.

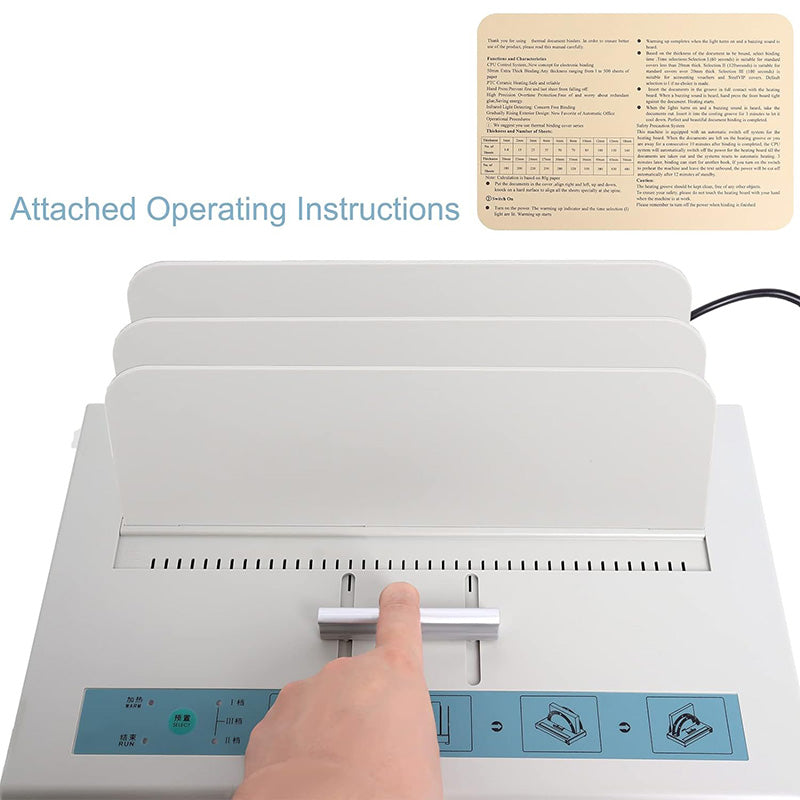

In order to ensure better use of the product, please read this operational procedures:
1.Put the documents in the cover, align right and left, up and down, knock on a hard surface to align all the sheets specially at she spine
2.Turn on the power. The warming up indicator and the time selection (Ⅰ)light are lit
3.Warming up starts
4.Warming up completes when the light turns on and a buzzing sound is heard
5.Based on the thickness of the document to be bound, select binding time.
Time selections:
Selection I.(60 seconds) is suitable for standard covers less than 20mm thick.
Selection II(120seconds) is suitable for standard covers over 20mm thick.
Selection III (180 seconds) is suitable for accounting vouchers and SteelVIP covers.
Default selection is I if no choice is made
6.Insert the documents in the groove in full contact with the heating board.
When a buzzing sound is heard, hand press the front board tight against the document. Heating starts
7.When the lights turns on and a buzzing sound is heard, take the documents out.
Insert it into the cooling groove for 3 minutes to let it cool down.
Perfect and beautiful document binding is completed

Caution:
1.The heating groove should be kept clean, free of any other objects
2.To ensure your safety, please do not touch the heating board with your hand when the machine is at work
