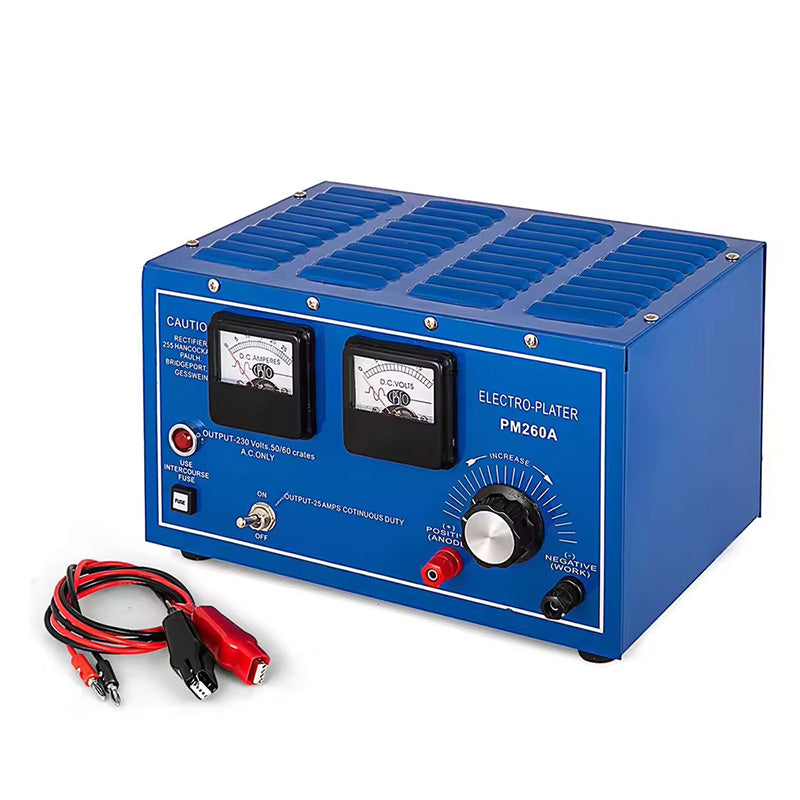

Jewelry Plating Rectifier 30A Electroplating Rectifier Thyristor Platinum Silver Rhodium Jewelry Tools Equipment

Specification:
Rated voltage: 220V/110V    Max current: 30 A    Max.adjustable voltage: 20V.
Features:
The gold plating machine features portable light weight but high efficiency. Needs less plating time, and the film is smooth and uniform,stable and clean output for best finish.

DIFFERENT MATERIALS
Gold Plating (14K, 18K, 24K):Anode (+): Clamp titanium mesh
Cathode (-): Clamp jewelry
Temperature: 70-80 ℃ Plating time: 20-50 s (Based on plating 1 – 4 piece rings)
Silver Plating:Anode (+): Clamp titanium mesh Cathode (-): Clamp jewelry
Voltage: 5 V Temperature: 40 ℃ Plating time: 3-5 s Platinum Plating:Anode (+): Clamp titanium mesh Cathode (-): Clamp jewelry
Adjustable range of voltage: 3-4 V Temperature: 30-40 ℃ Plating time: 90-120 s.

SAFETY
With thyristor rectifier, the Jewelry Plater Electroplating Rectifier features automatic voltage regulation and steady current,
over voltage and over current protection, under voltage and phase loss protection.

WIDE USE
The jewelry plating electroplating rectifiers are ideal for today's surface treatments.
They have obvious effects on various plating types (plating copper, nickel, chromium, gold, silver, electrophoresis, etc.).
And the film is smooth and uniform, especially irregular workpieces are more noticeable (with less plating time).

This machine is suitable for welding chains (necklaces, bracelets, dental braces, stainless steel glasses frames, etc.),
it is recommended to weld items in the diameter range of 0.5-1.2mm, otherwise it may cause failure
