Dividing Head K12-65mm Type Divding Head,4:1 CNC 4th-Axis A-Axis Rotation-Axis,4 Jaw Chuck+Nema17 Stepper Motor for CNC Router Engraver Machine

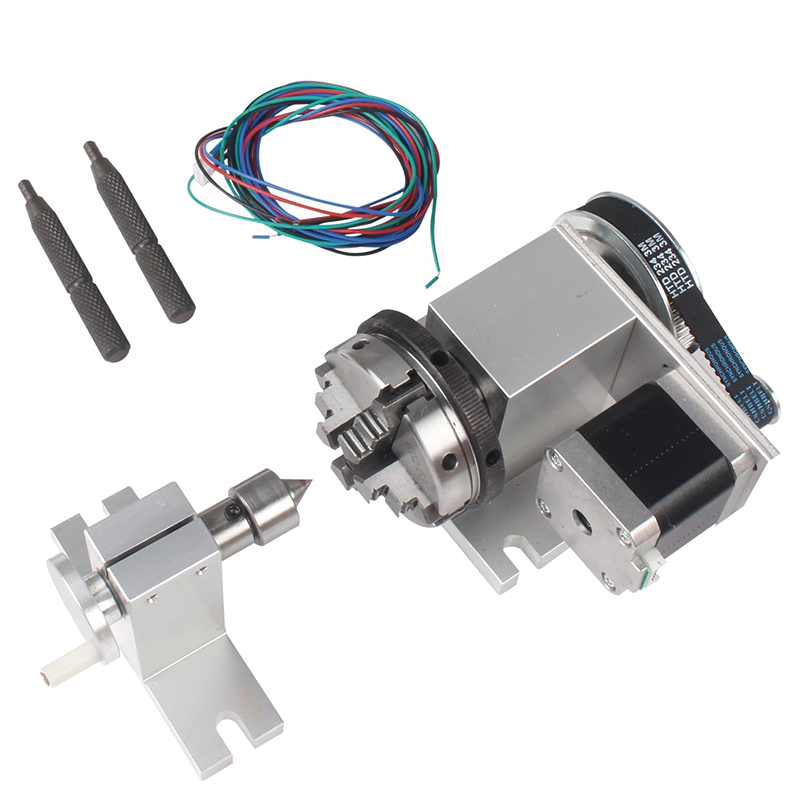

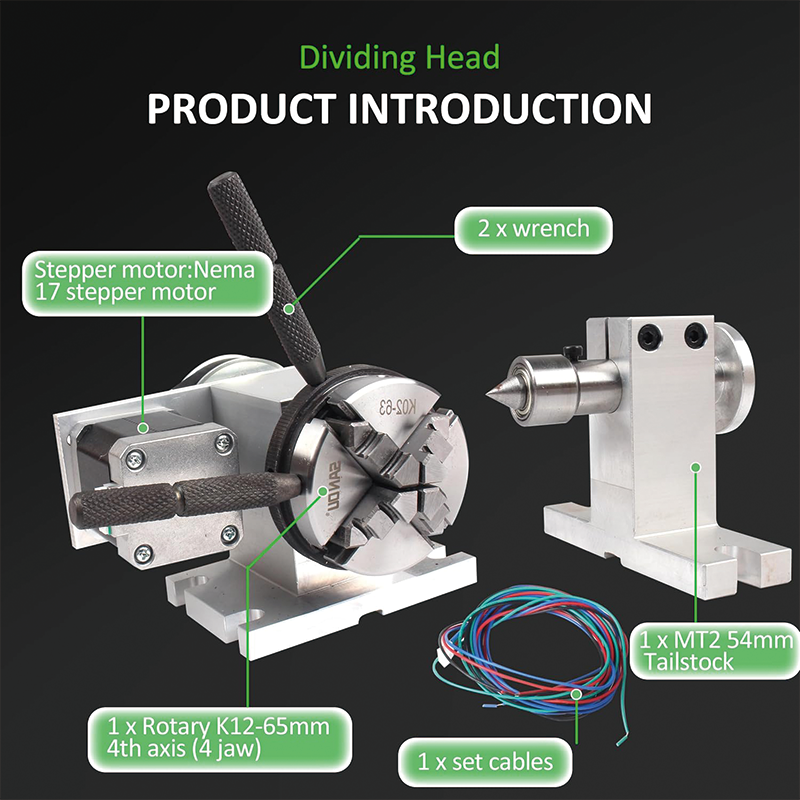

Package included

1 x K12-65mm CNC Router Rotary Table Rotary Reducing Ratio 4:1
1 x 54mm Tailstock
2 x Wrench
1 Set cables

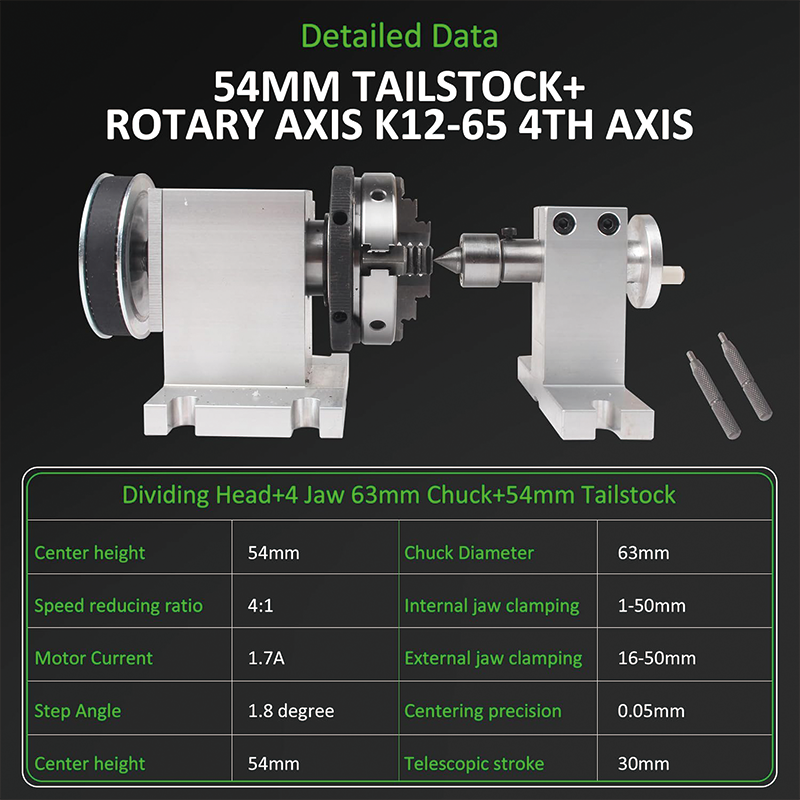

Dividing Head Parameters

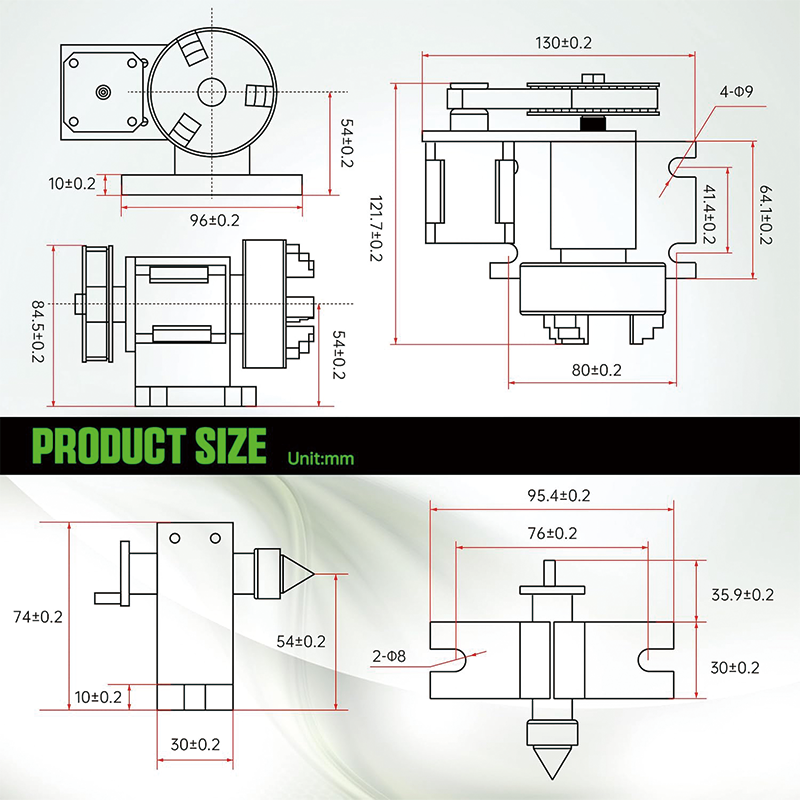

Center height: 54mm
Total height: 85mm
Angle: 0.3°/step
Transmisiion output shaft diameter: 20mm
Speed reducing ratio: 4:1
Clamping Range : 1-50mm
Hold tight size range:16-50mm
Centering precision: 0.05mm

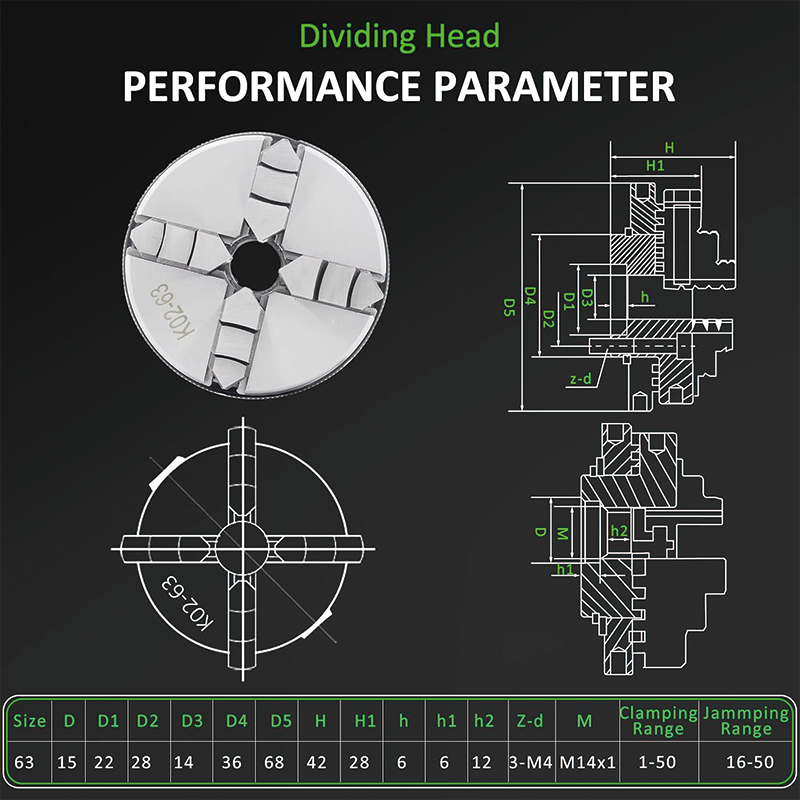

Chuck Model: K02-63
Chuck: 4 Jaw Chuck
Chuck Diameter: 63mm

Applications

It is mainly matched with ordinary lathes, CNC lathes, grinders, milling machines, drilling machines and machine tool accessories, and is suitable for cutting non-ferrous metals and plastics and other non-metals.
It is generally suitable for clamping small and medium-sized parts with regular shapes, such as cylindrical, regular triangle, regular hexagonal workpieces, etc.

Nema17 stepper motor 2 phase

Motor Torque: 45N.cm (64oz-in)
Motor Current: 1.7A
Step Angle: 1.8 degree

Tailstock

Center height: 54mm
Telescopic stroke: 30mm
Top tip: activity type
