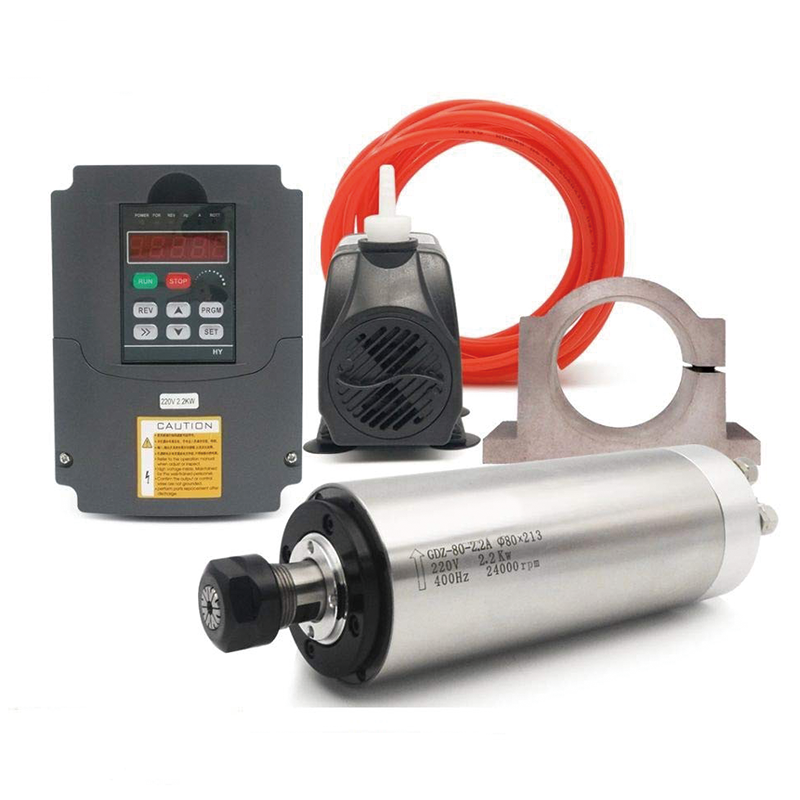

CNC Spindle Motor Kits,220V 2.2KW,Water Cooled Spindle Motor,Spindle Motor 24000 RPM 400 Hz for CNC Router Engraving Milling Grind Machine

Connection way

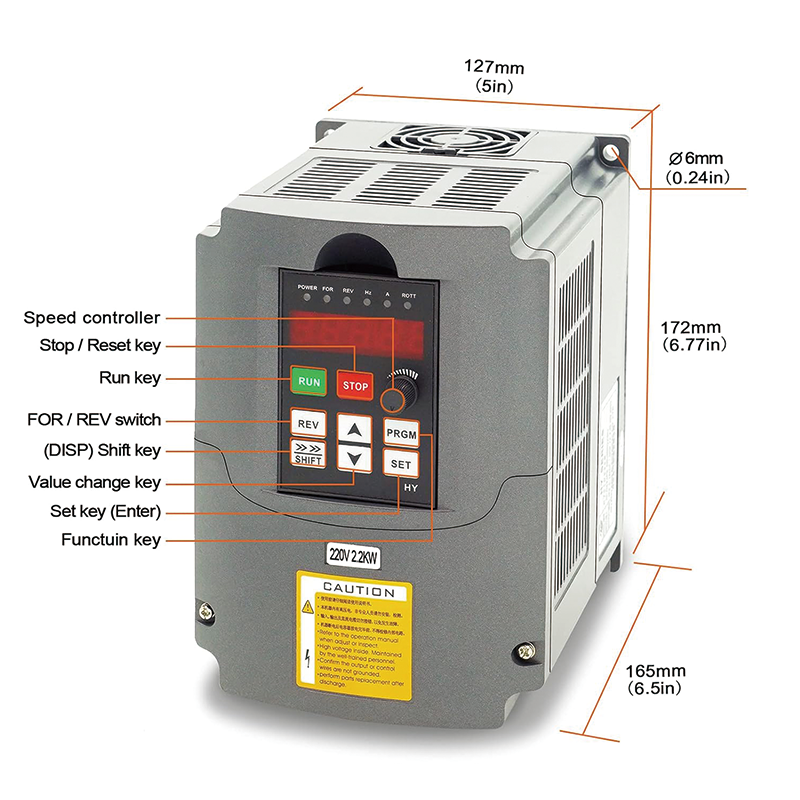

The package only supports AC 200V-240V 1 or 3 phase voltage input, the input wire is connected to the R and S terminals of the VFD, and the output wire is connected to the UVW terminal of the motor（pin1=U,pin2=V,pin3=W,pin4=ground）

Parameter Settings

All basic parameterhave been set up, the customer can directly connect and start when receiving the product.

Package Include

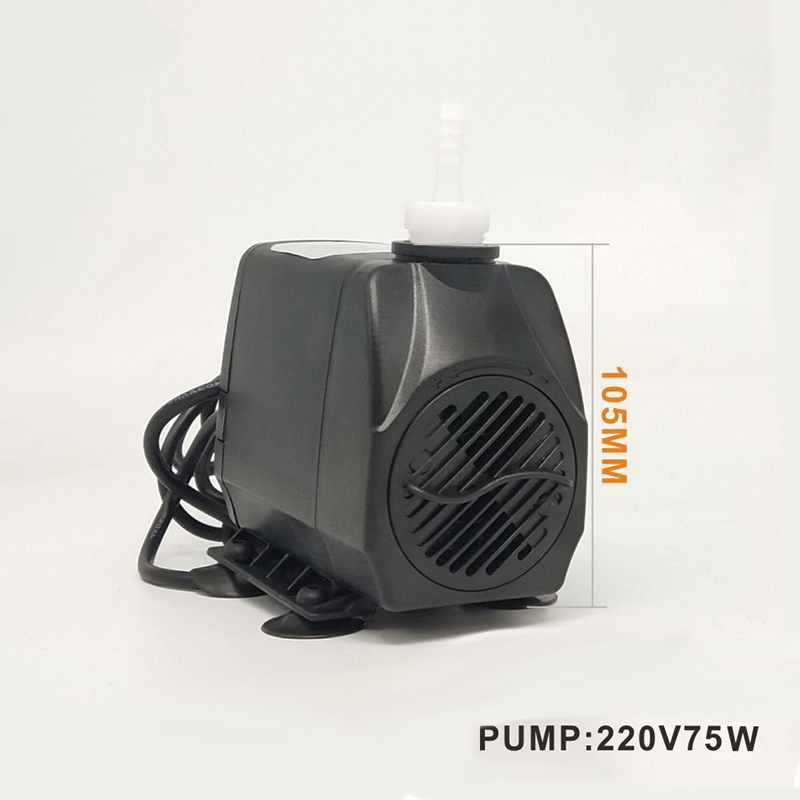

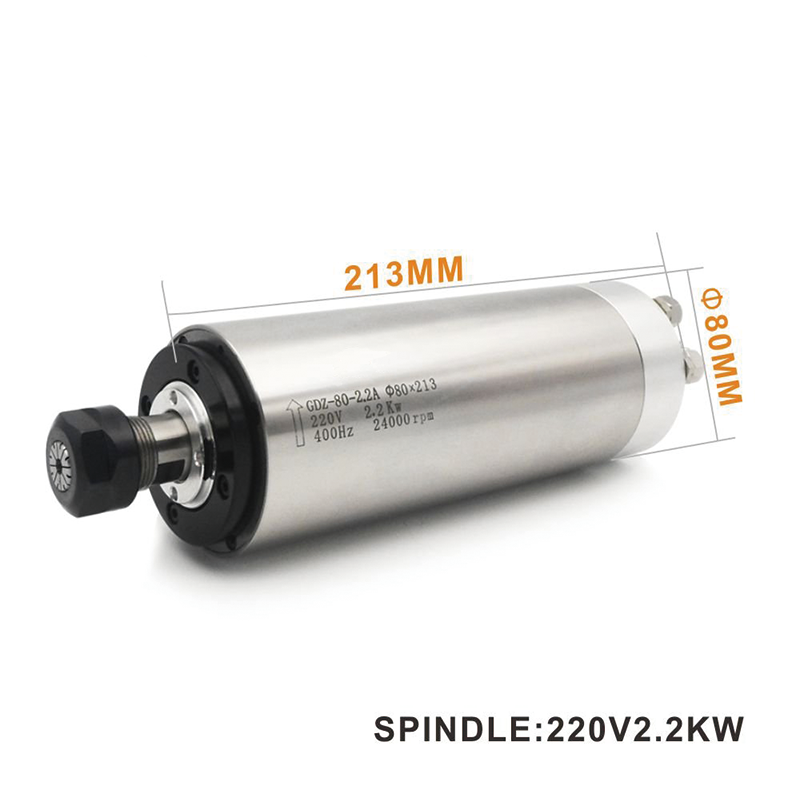

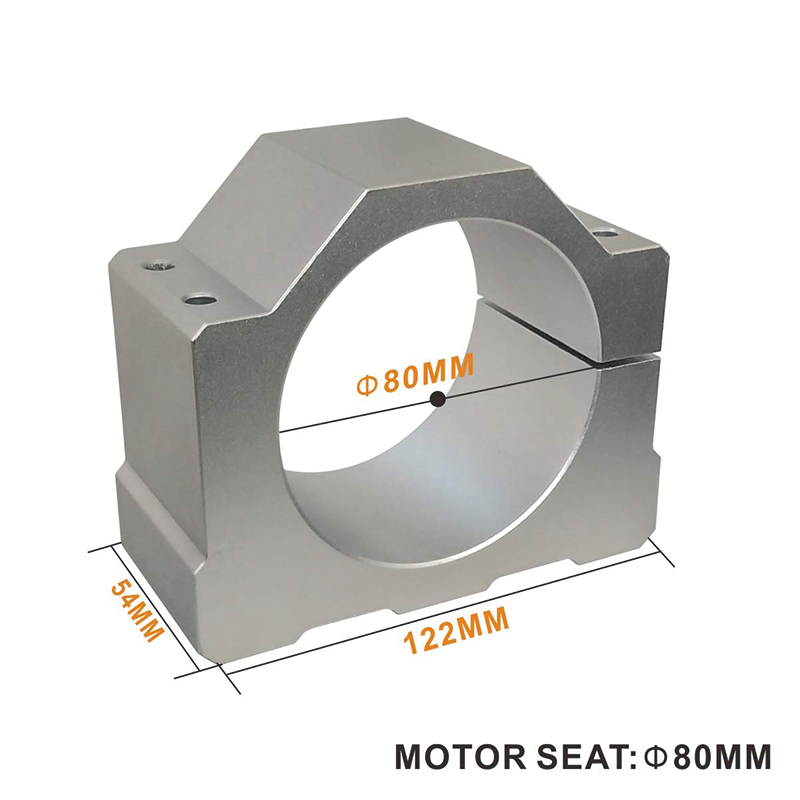

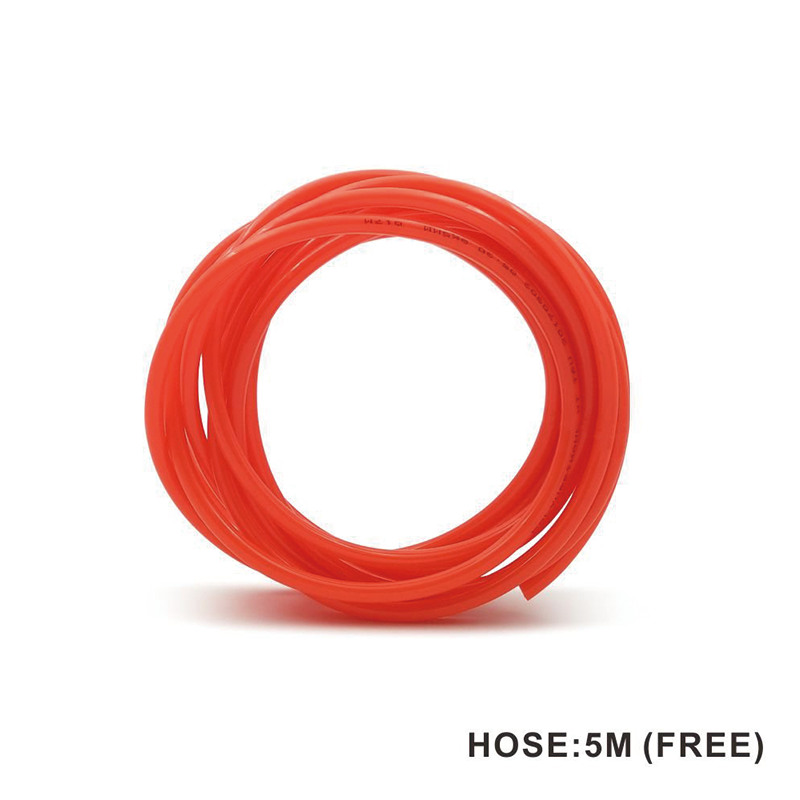

1 x 220V-2.2KW VFD, 1 x2.2KW Φ80mm 24000RPM ER20 Spindle.1 x 220V-75W Water Pump ,1 x 80mm motor clamp,1 x 5m horse.

Wide range of applications

The spindle motor applied to: wood carving/engraving machine, advertisement engraving machine,CNC machine, small sized processing center, high speed centrifuge etc.
