Description

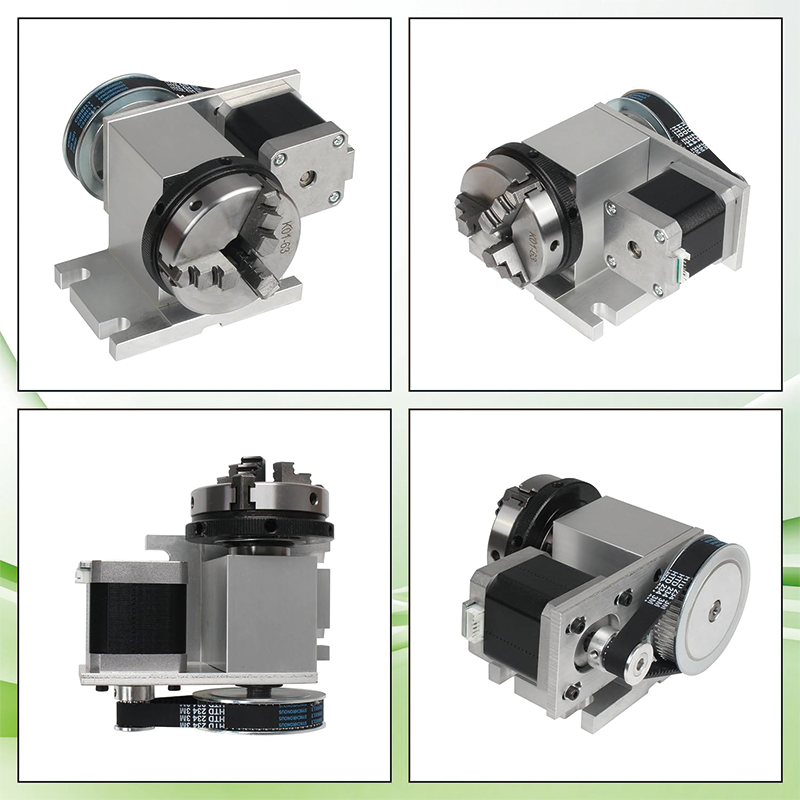

Rotation 4th Axis

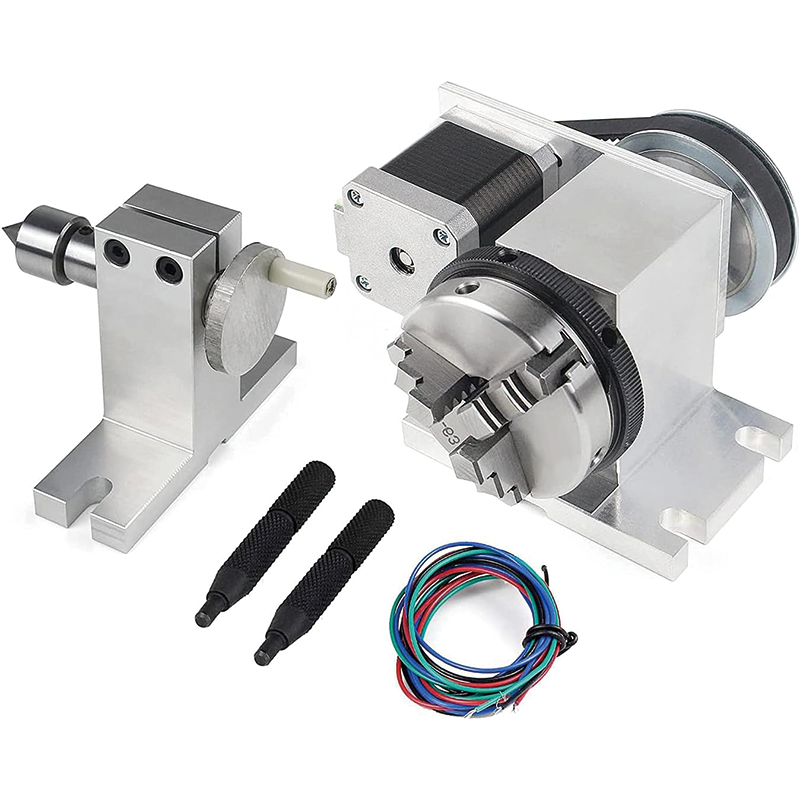

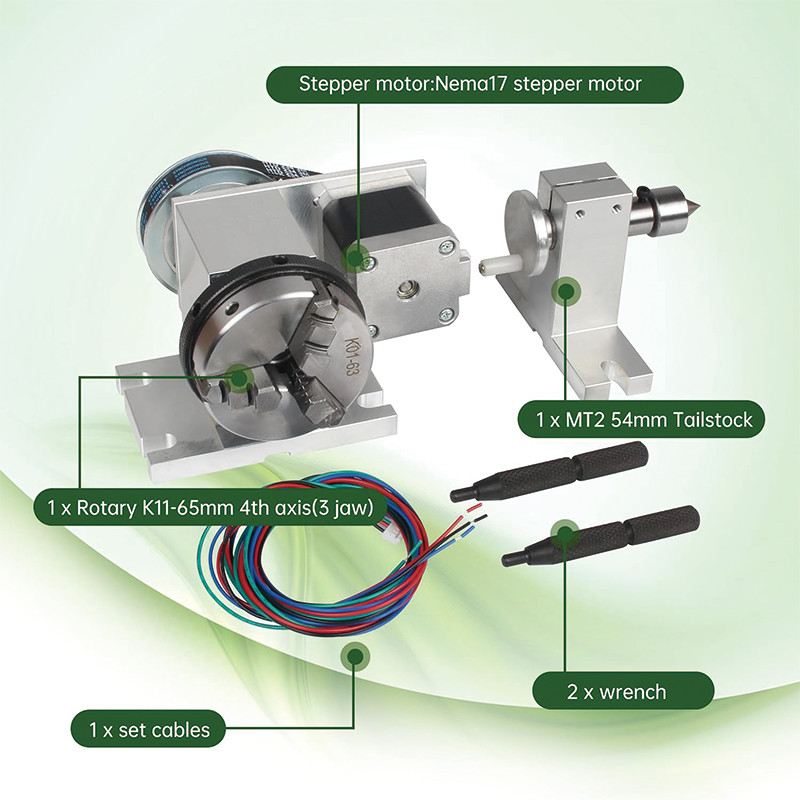

Model:K11-65mm; Chuck Type:K01-63mm 3 Jaw Chuck;54 mm tailstock
Feature

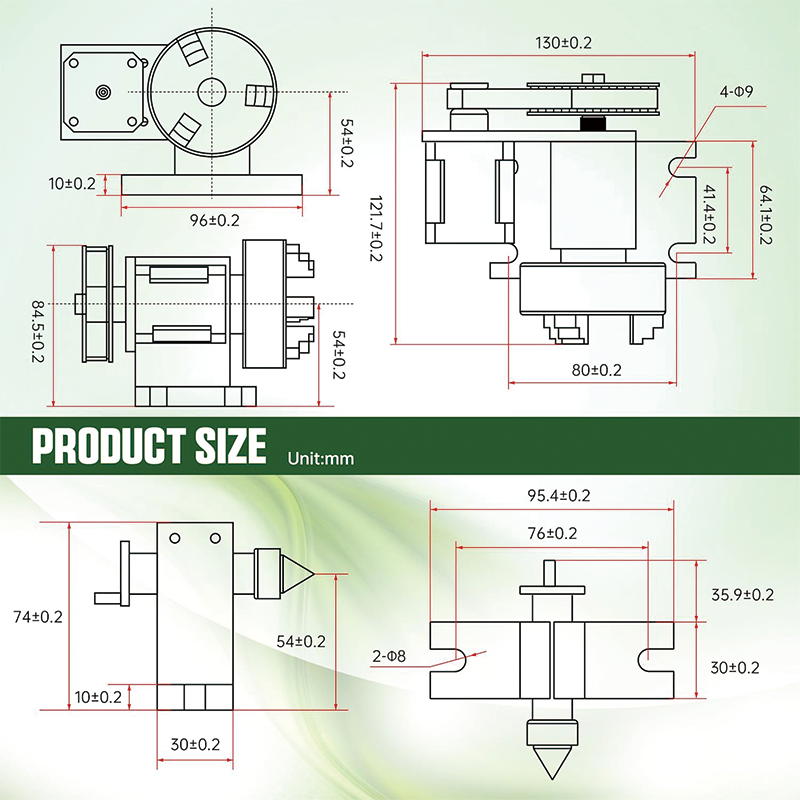

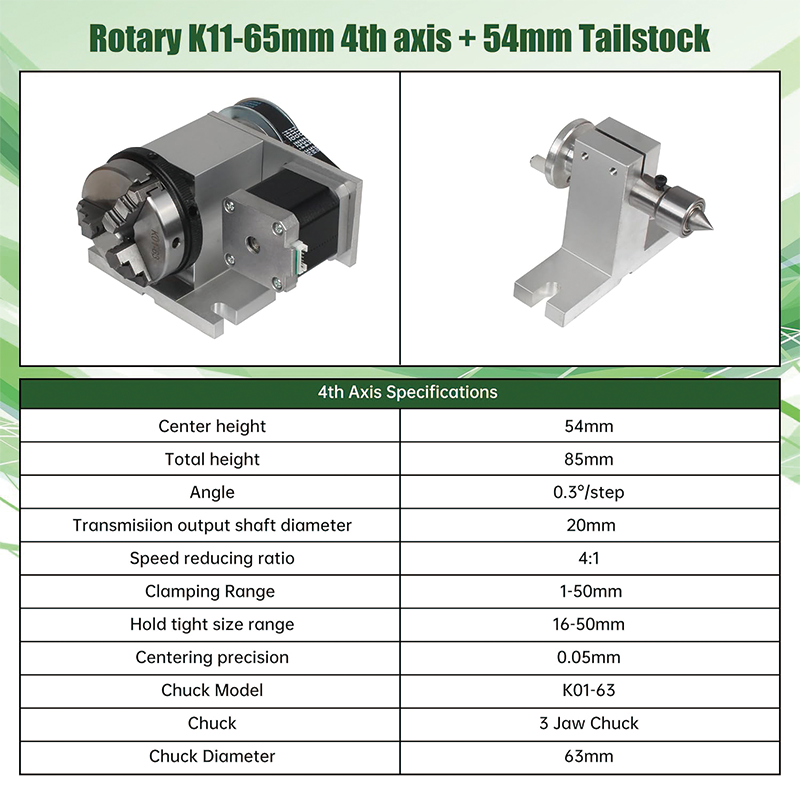

K11-65mm with three-jaw centering chuck: middle height: 54mm, total height: 85mm, angle: 0.3°/step, diameter of gear output shaft: 20 mm, reduction ratio: 4:1 (belt delay mode).
Stepper motor
Nema17 2-phase stepper motor 45N.cm (64oz-in) 1.7A
Advantages

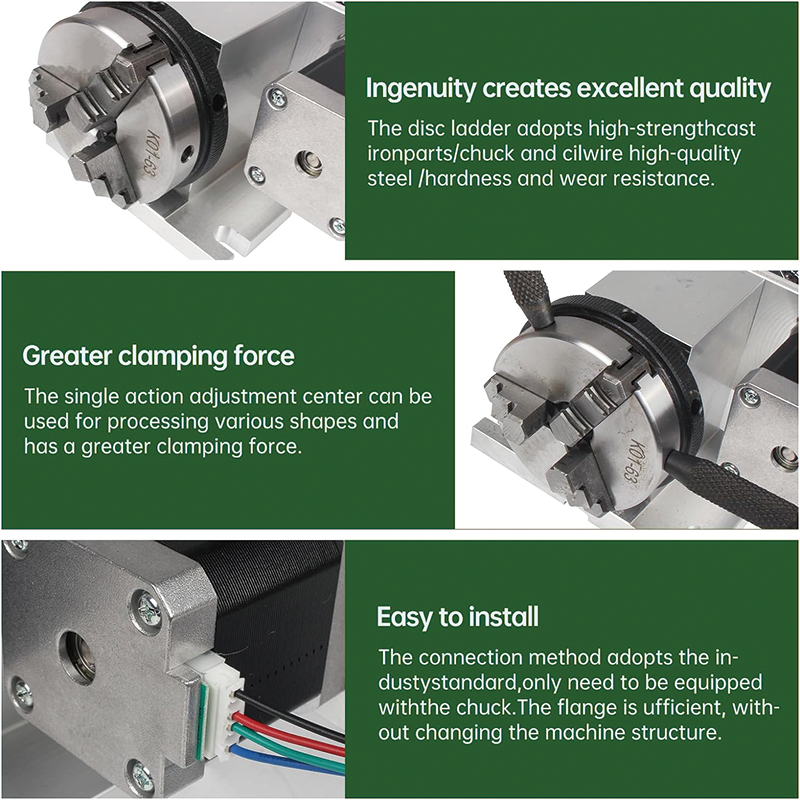

Rust-proof dust cover, polishing and anode oxidation cover, rust protection coating. ,stable 3 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life.
Application

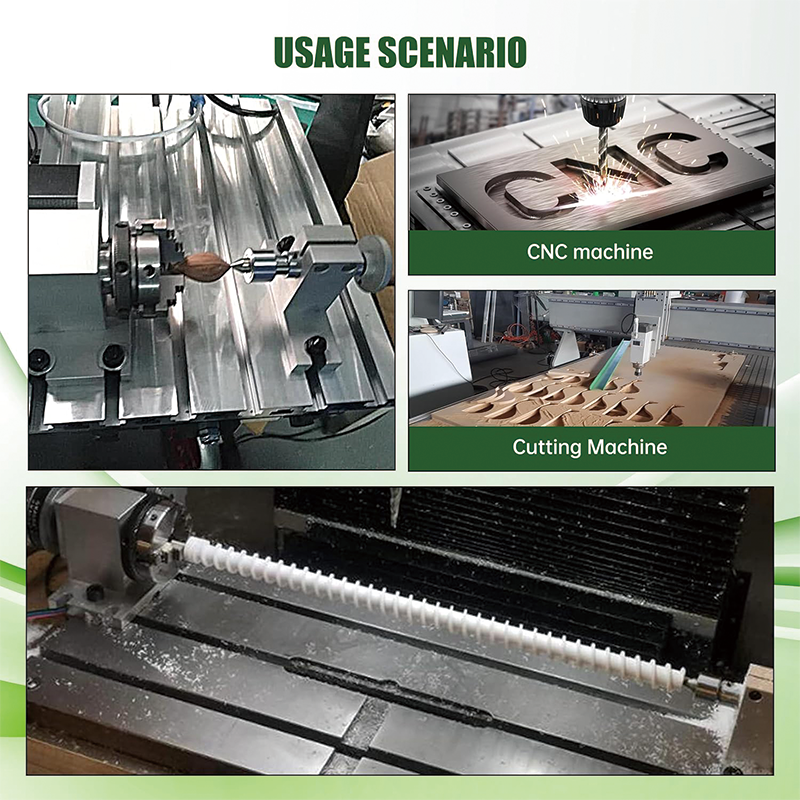

The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars, bamboo joints, etc.
