Description
|

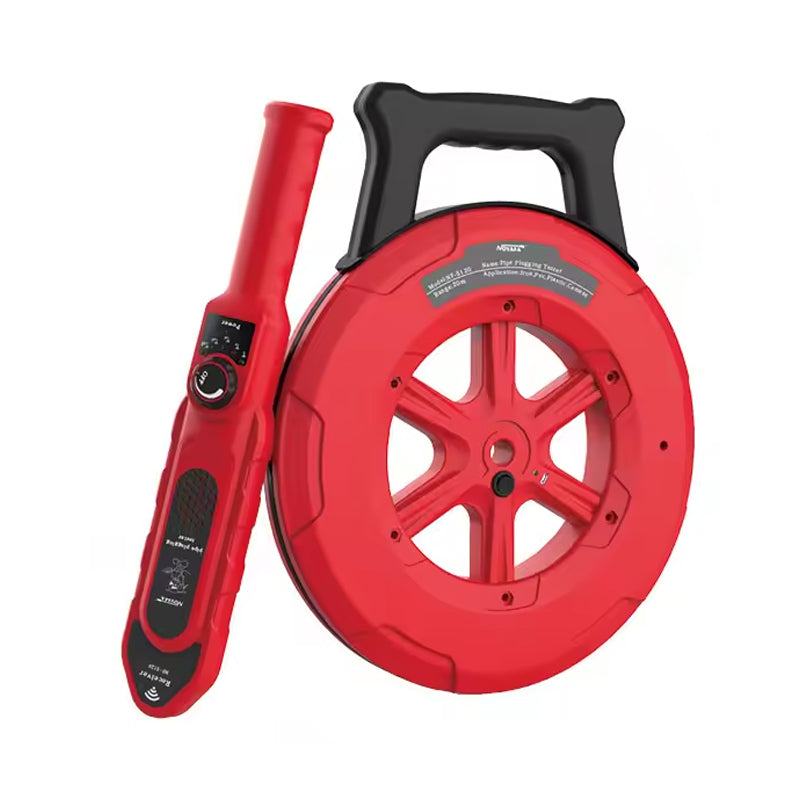

Transmitter specification
|
|||
|
Scope of application
|
PVC pipe
|
||
|
plastic pipe
|
|||
|
Cement pipe
|
|||
|
Iron pipe
|
|||
|
metal pipe
|
|||
|
Signal Length
|
NF-5120
|
NF-5130
|
NF-5140
|
|
20m
|
30m
|
40m
|
|
|
Working frequency
|
300Hz
|
||
|
Work hours
|
10H
|
||
|
Working temperature
|
0-40℃
|
||
|
Power supply
|
3.7V, 2600mAh
|
||
|
Receiver Specification
|
|||
|
Distance Range
|
0-60cm (Metal pipe)
|
||
|
0-15cm (Non-metal pipe)
|
|||
|
Sensitivity adjust
|
YES
|
||
|
Working frequency
|
300Hz
|
||
|
Work hours
|
20H
|
||
|
Power supply
|
3.7V, 1400mAh
|
||
Main Function:

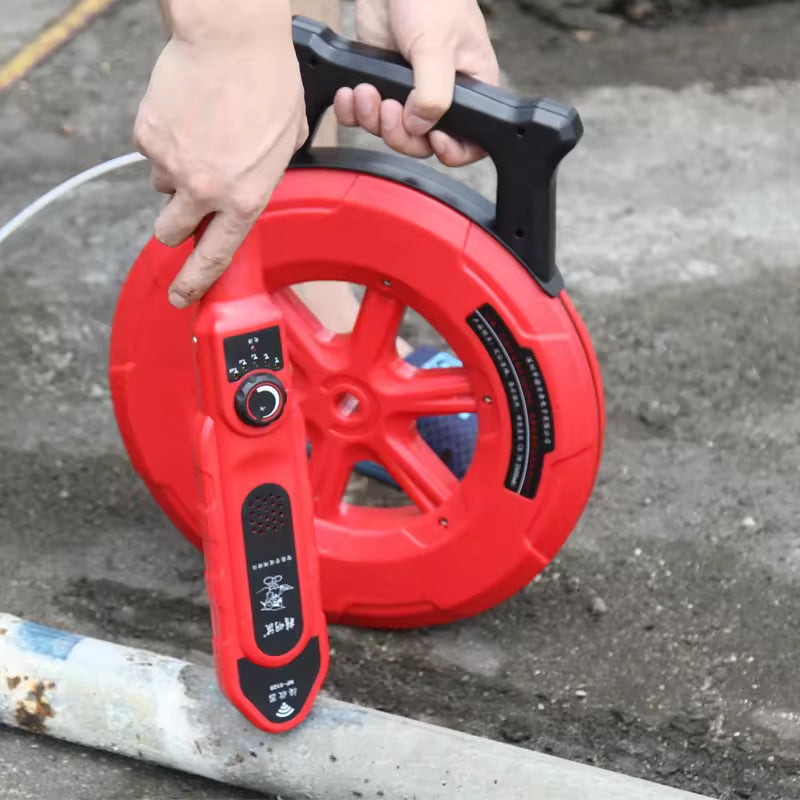

1.It can locate the blockage point in the pipeline accurately, with strong signal penetration, soft cable ,easy to bend.
2.and can be used for pipes such as pvc pipes and metal pipes.

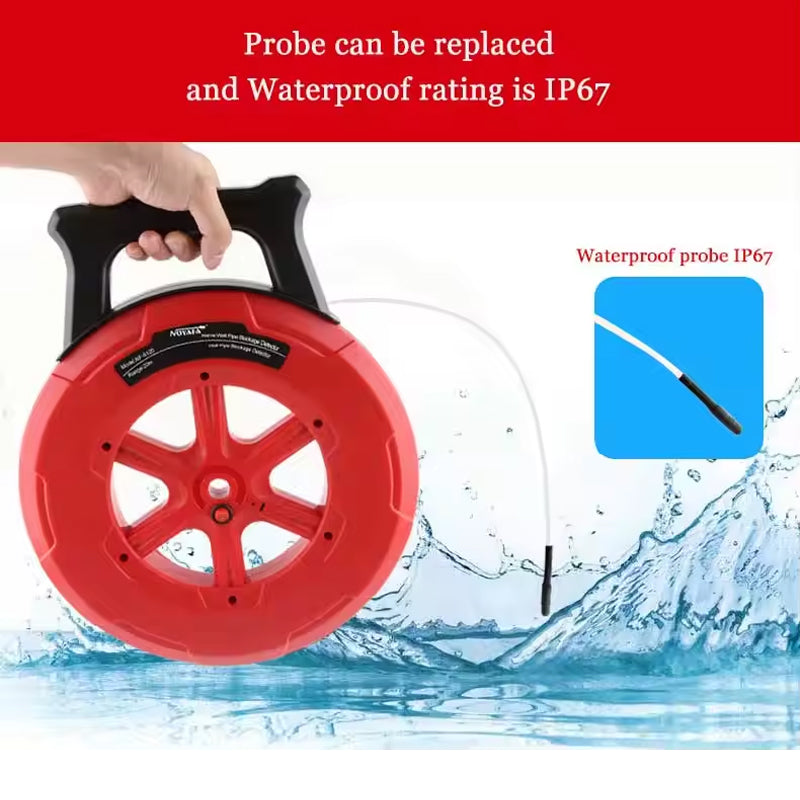

3.The probe is replaceable and with waterproof design, IP67 waterproof rating.
4.Measurement Depth:40cm

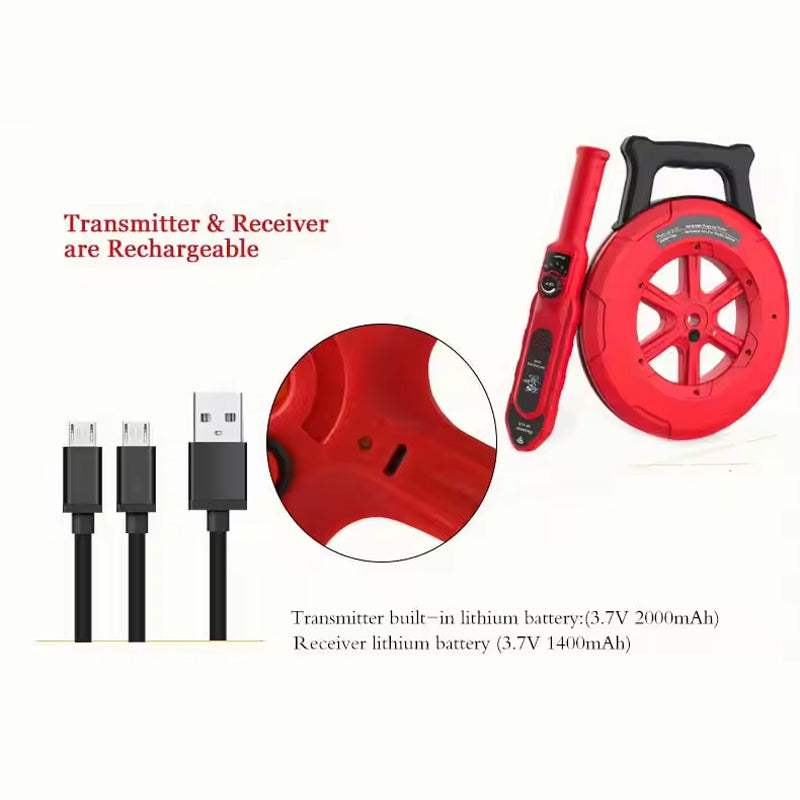

5. lithium battery, USB charging available.
6. There are 20 meters, 30 meters, 40 meters different range available.
7. Wireless probe. It accurately locates hidden blockage, clogging inside the pipe and reminds you with a buzzing sound.
