Technical Parameters

Material: 1.5 mm/0.06'' cold-rolled steel

IP Rating: IP66

Mounting Type: Wall-Mount

Mounting Plate: 1 mm/0.039'' Detachable Galvanized Back Plate

Weight: 12.3 lbs /5.6 kg

Application: Outdoor /Indoor

Product Features

1.EASY TO INSTALL

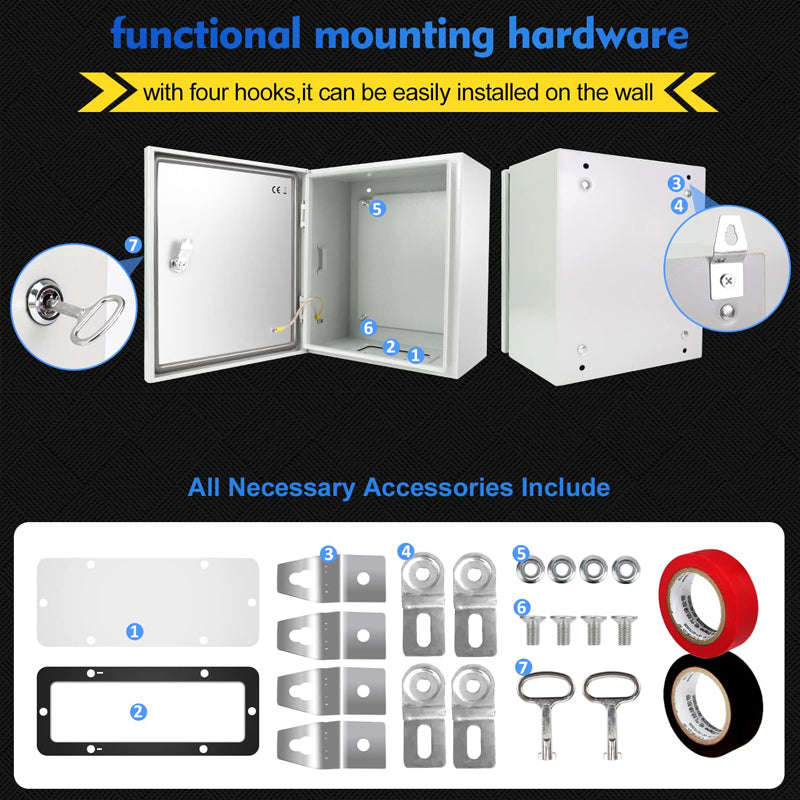

Complete accessories and mounting holes are easy for the installer to drill and modify.

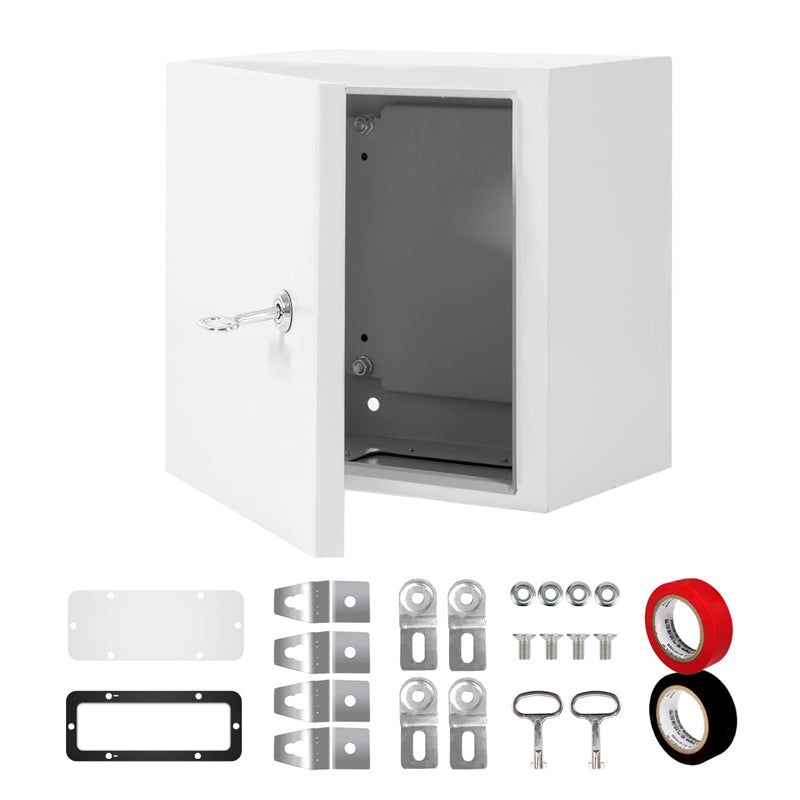

We prepare several accessorries for you, you can install where you like, and also, there are two sets of keys per electrical enclosure box.

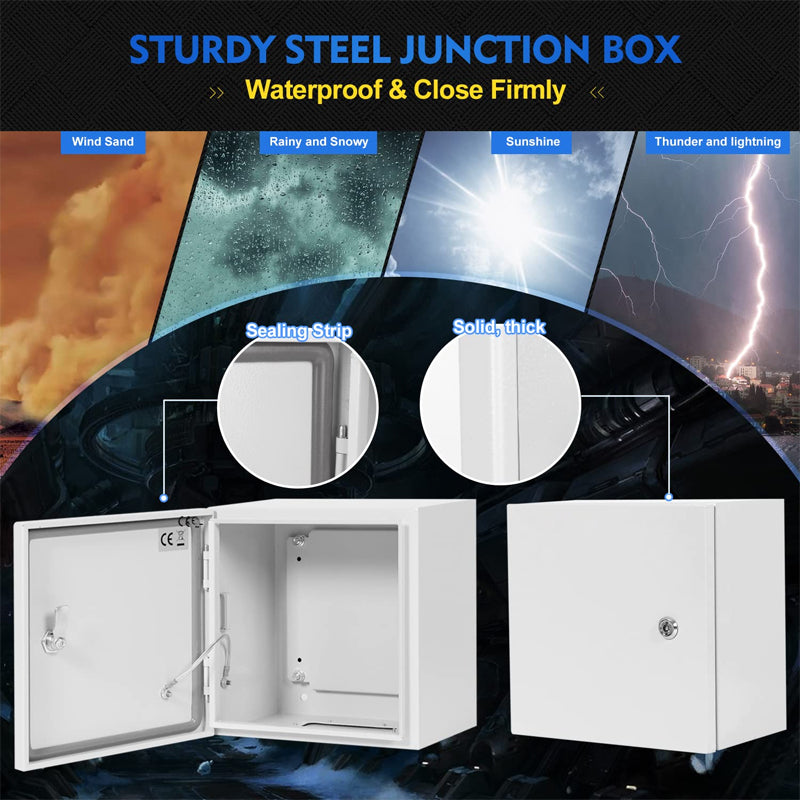

2.STURDY CONSTRUCTION

Electrical box adopts heavy-duty fiberglass reinforced polyester made by precise cutting and welding.

Heavy metal steel material makes the junction box a strong waterproof guard.

3.IP66 GRADE

Nema 4X enclosure comply with NEMA 4X & IP66, excellent water resistance, and dust resistance.

Waterproof & weather designed, effectively block splashing water, rain, dust, snow, oil, UV, etc.

Can be widely used for both indoor and outdoor applications and can prevent rain erosion.
