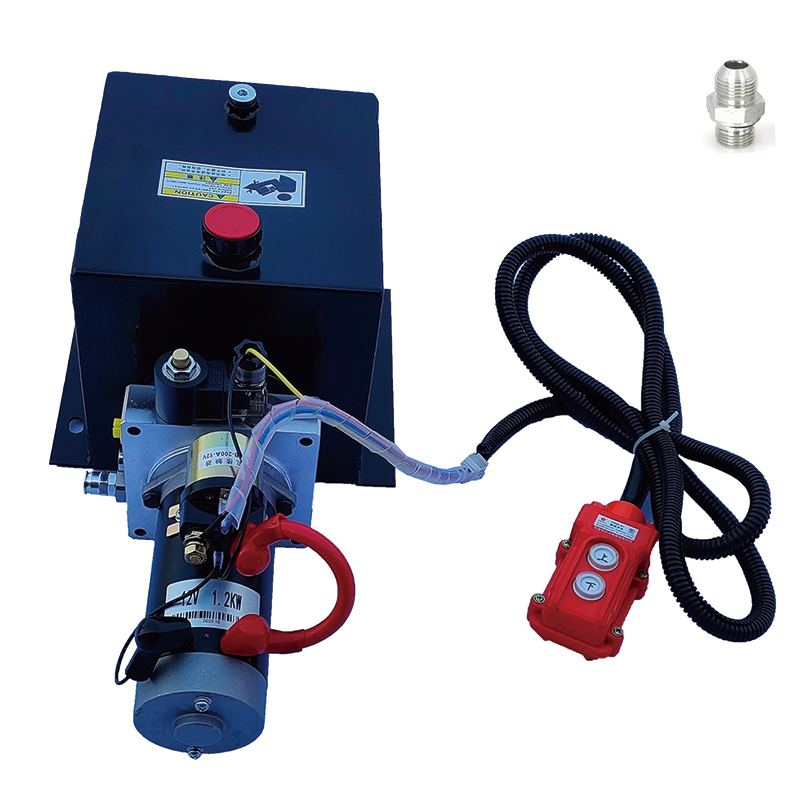

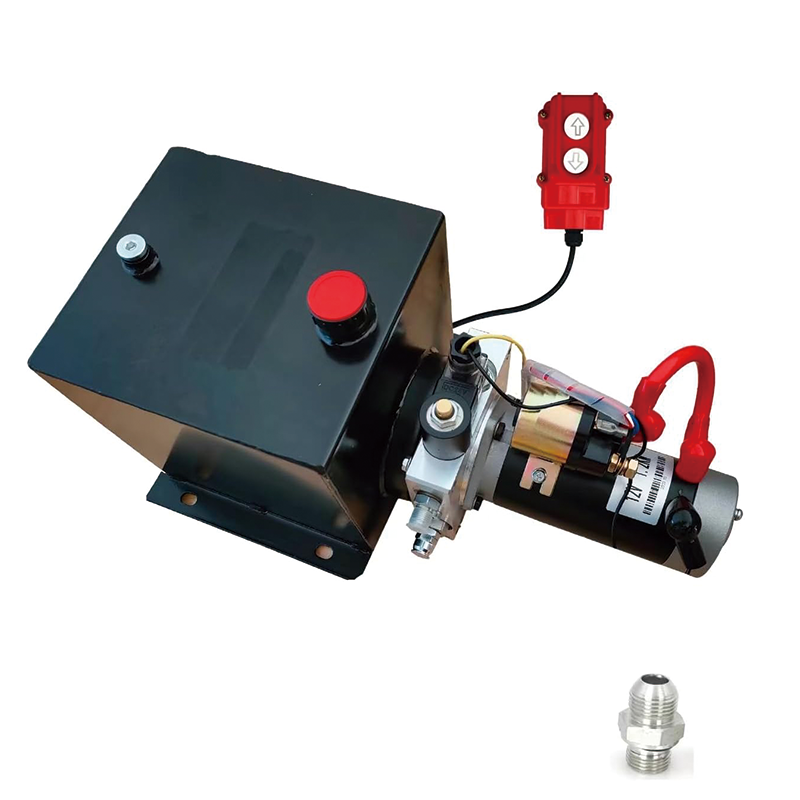

Hydraulic Power Unit,8 Quart Hydraulic Dump Trailer Pump,2200PSI 12V DC Hydraulic Station Pump Single Acting,for Dump Trailer Car Lifting

Hydraulic power unit / hydraulic pump technical parameters

Voltage: DC12V, 24V, 48V, 60V, 72V, AC110V, 220V
Power: 0.75-4KW
Flow rate: 0.26-5.5GPM, Port size: SAE # 6
Relief valve pressure: 2200PSI, adjustable.
Fuel tank capacity: 0.75-25Quart
Actions: single acting and double acting
Control: manual control and wireless remote control
Installation methods: vertical installation and horizontal installation

Motor

The voltage is 12 volts. The power is 1.2KW.

Design

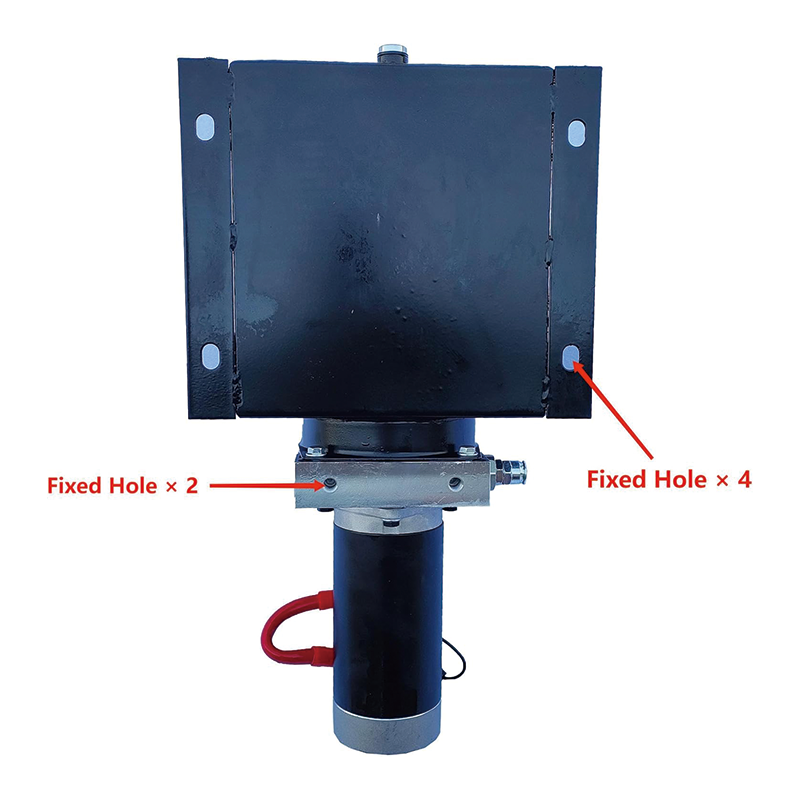

It adopts a lightweight design and is more energy-efficient.It is fixed in six positions for greater stability.

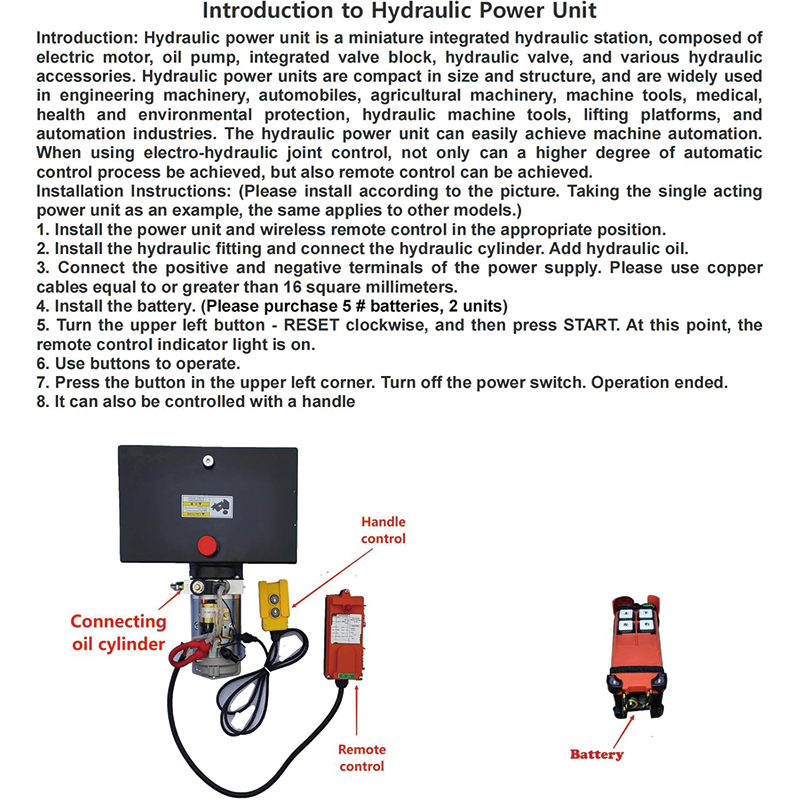

Installation

Easy to install, Great stability and long service life.
