Description
|
SPECIFICATION(HWN11000YD/Y1D/Y2D) |
|||
|
Rated line pull |
11000 lbs (4990 kgs) |
||
|
Motor displacement |
65ml/r |
||
|
Oil flow |
15~45L/min |
||
|
Pressure |
12.5Mpa |
||
|
Gear reduction ratio |
25.5:1 |
||
|

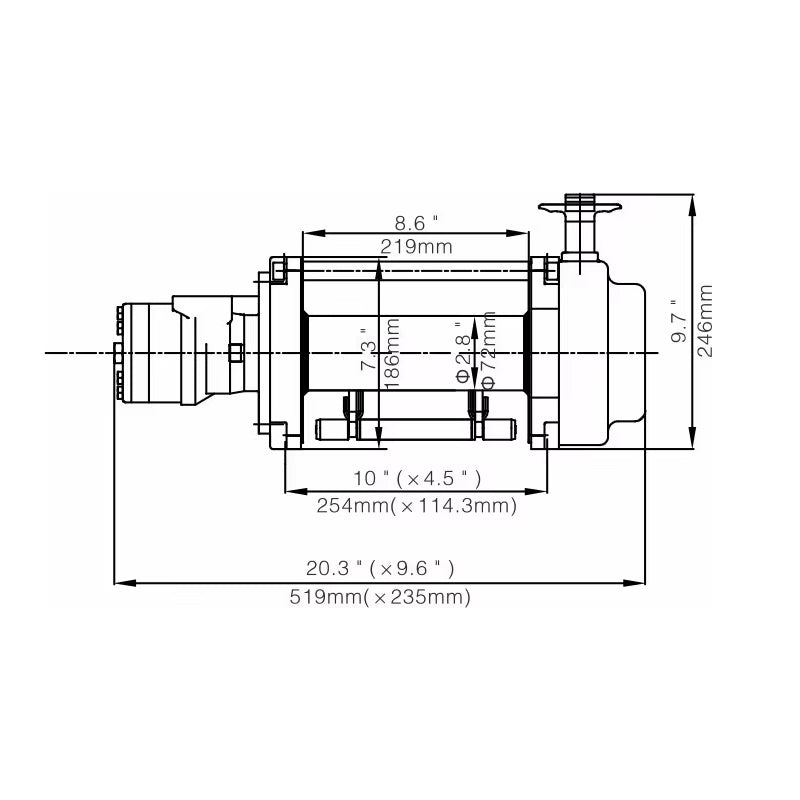

Cable (Dia.× L) |
Ø13/32"×83.7 ' (Ø10.2mm×25.5m) |
||
|
Drum size(Dia.× L) |
Ø2.8 "×8.6" (Ø72mm×219mm) |
||
|
Mounting bolt pattern |
10 "×4.5 " (254mm×114.3mm) 4-M12 |
||
|
Item |
HWN11000YD |
HWN11000Y1D |
HWN11000Y2D |
|
Overall dimensions |
20.4"×9.6"×9.7" |
20.4"×9.6"×8.2" |
20.4"×9.6"×11.5" |
|
Net weight |
117 / 53 |
117 / 53 |
117 / 53 |
Application:
Dredger, Plastic injection machine, Crusher, Auger drive，Fish boat, Lifeboat, Tracked vehicles, Paver Asphalt,milling, Drilling, trunk crane, hydraulic excavators, vibratory road rollers, construction machinery etc.
