Description
Product Description
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Model: | MR-X1 |
Diameter: | Φ4-Φ14mm |
Power: | 220V/160W |
Speed: | 4400rpm |
Point angle: | 3° |
Dimension: | 35*25*25cm |
Weight: | 14KG |
Standard Equipment: | Grinding wheel :SDC (for carbide)×1 |
Six collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14 | |
Two collet chucks:
2,4 flutes ×1 piece; 3,6 flutes×1 piece |
|
Optional Equipment: | Grinding wheel :CBN (for HSS) |

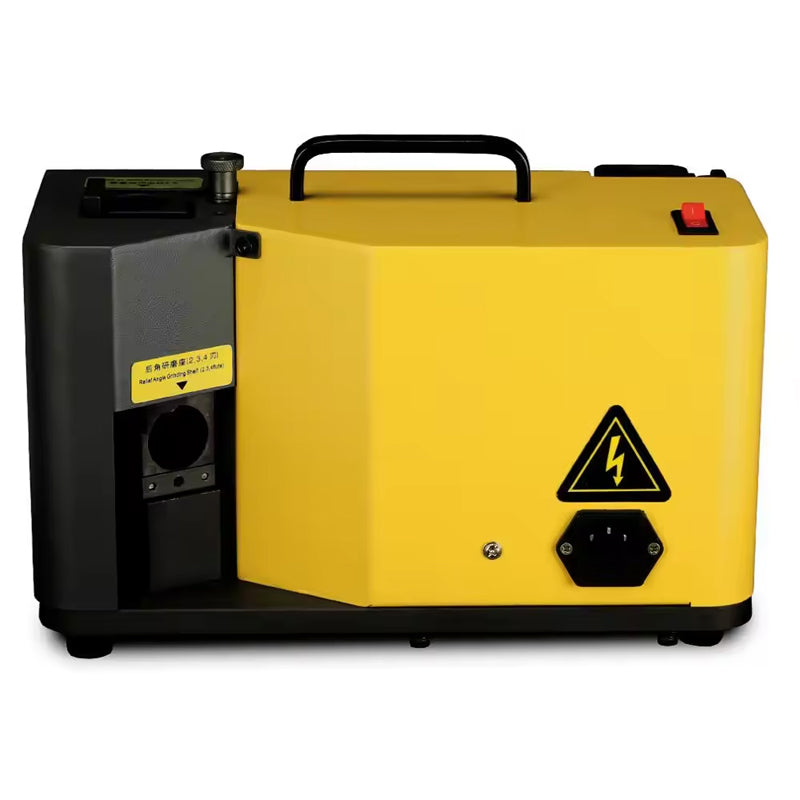

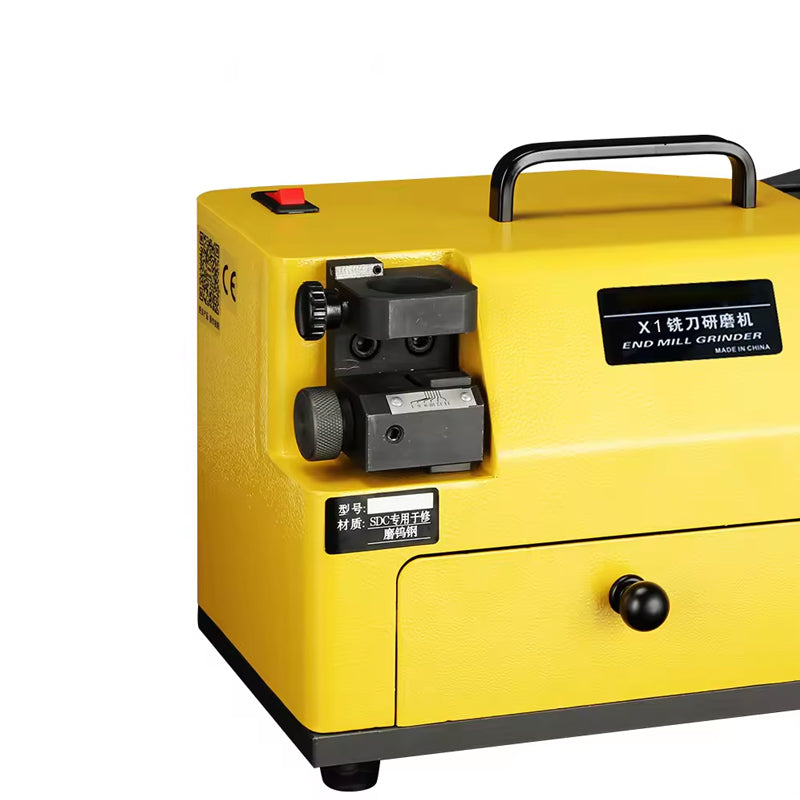

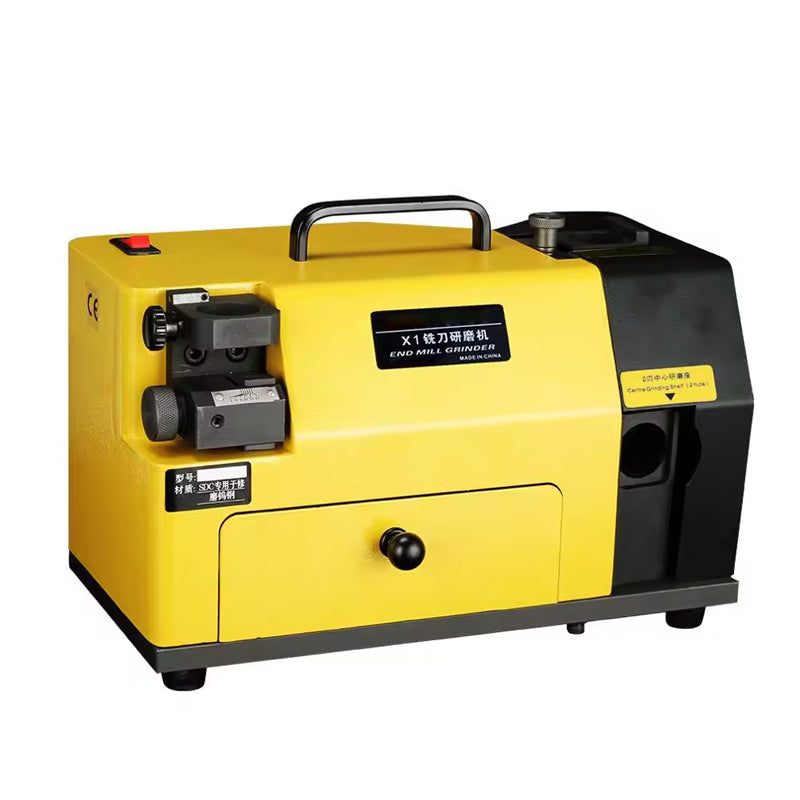

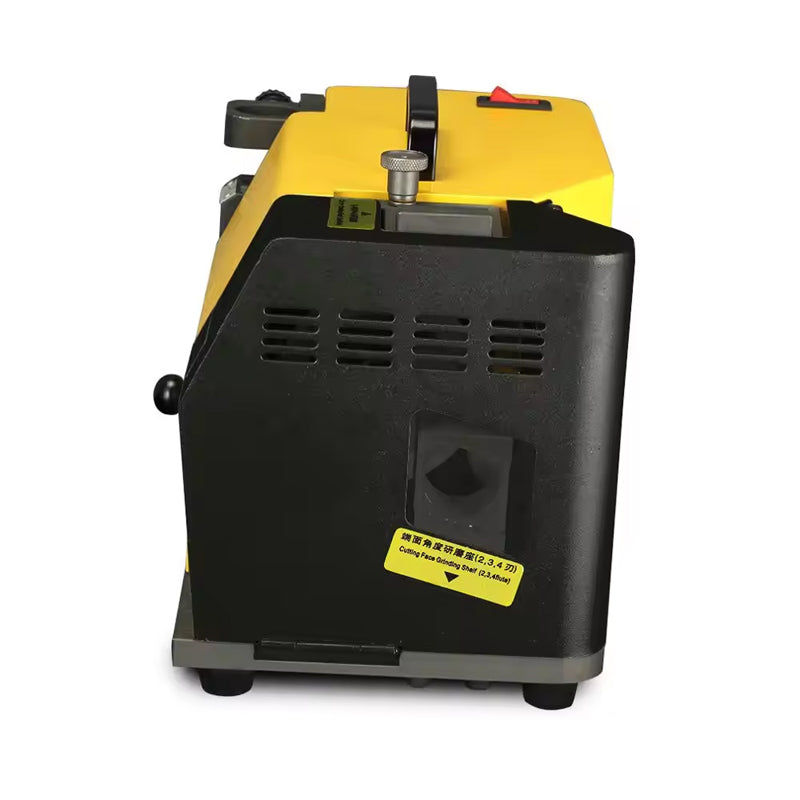

END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!

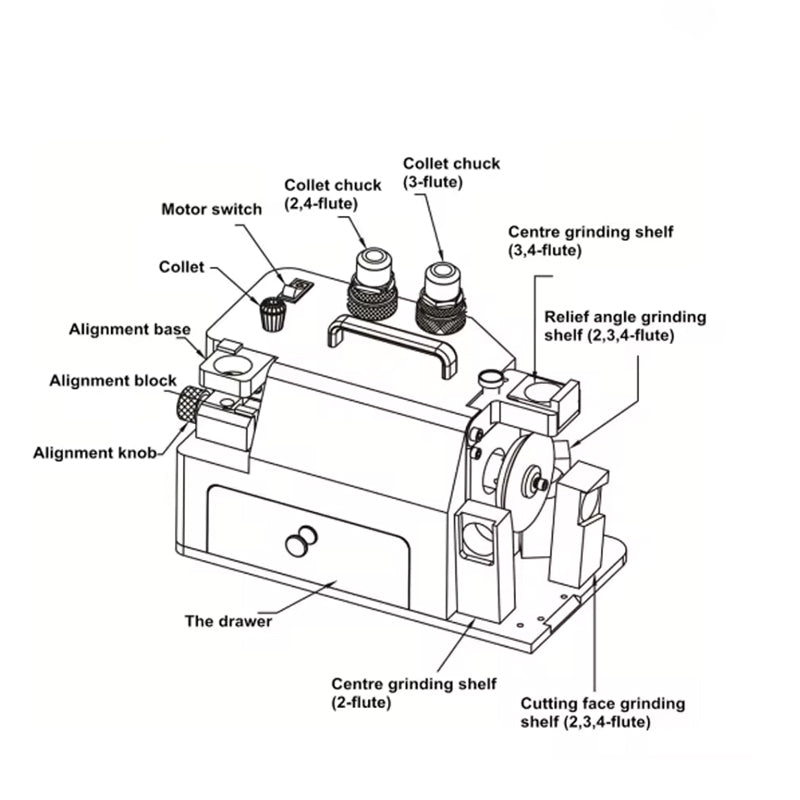

EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
EASY FOR END MILL GRINDING
According the the grinding hole, insert the chuck.
It is very clear to see the grinding position when open the cover of grinding wheel.
