Belt Grinder Knife Holder, 7-3/4 Inch Long Knife Sharpener Positioner Adjustable Angle -5°~ 25°, Belt Sharpener Holder With Double Handles

Product information details

Product Name: Grinding Jig

Material: Aluminum

Grit Type: Extra Fine

Application: Use with belt sanders, grinders, belt sharpeners, etc.

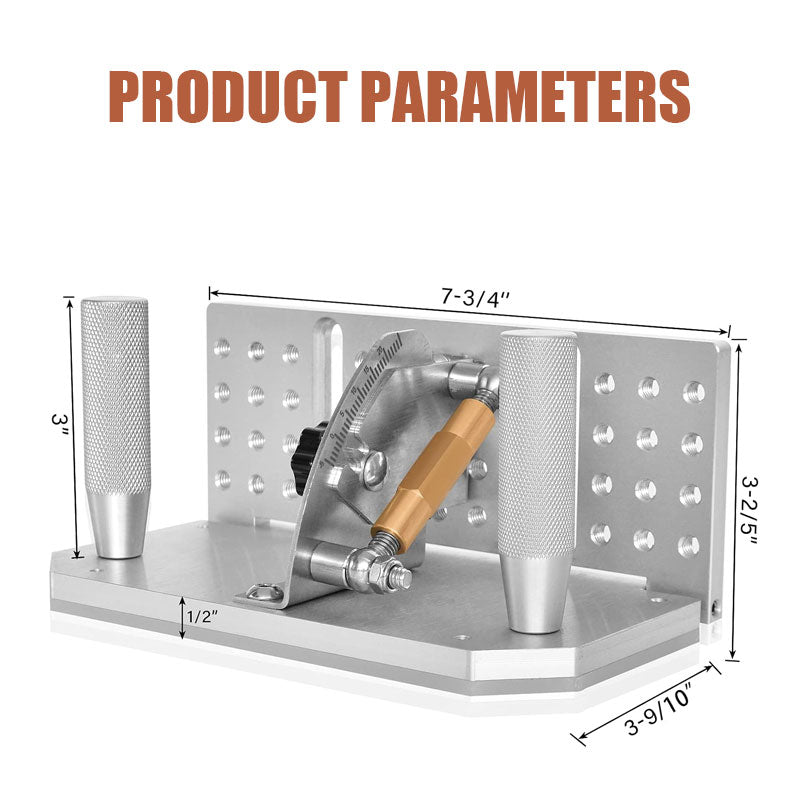

Product Size

About Grinding Jig Details

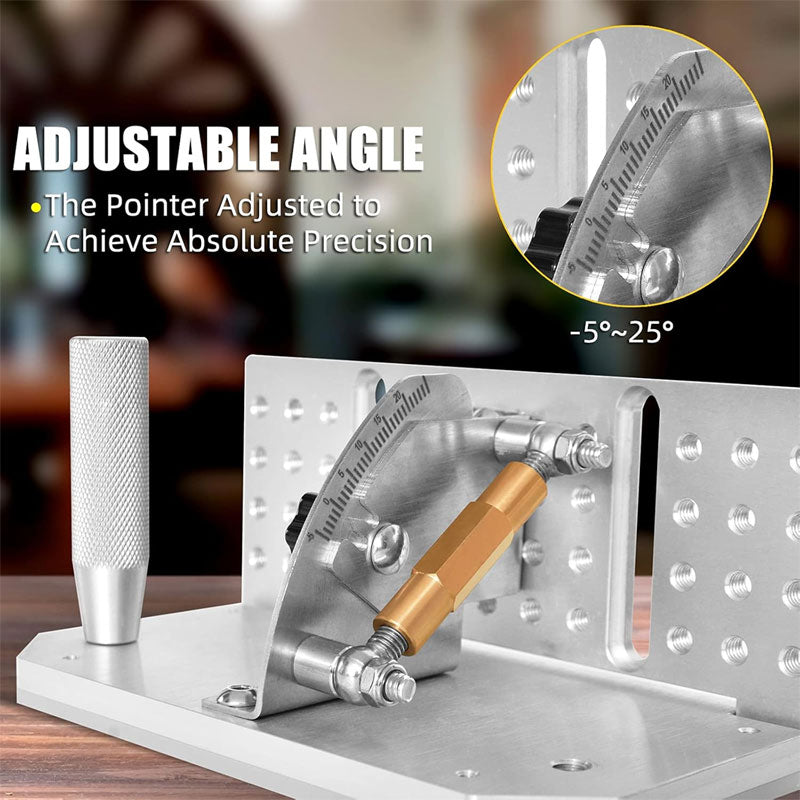

1. The dial is engraved with a scale and the adjustable range is -5°~25°. The locking knob and turnbuckle combination on the dial ensures zero movement.

The pointer can be adjusted with a wrench for absolute precision.

The ultra-fine thread turnbuckle can be adjusted with absolute accuracy.

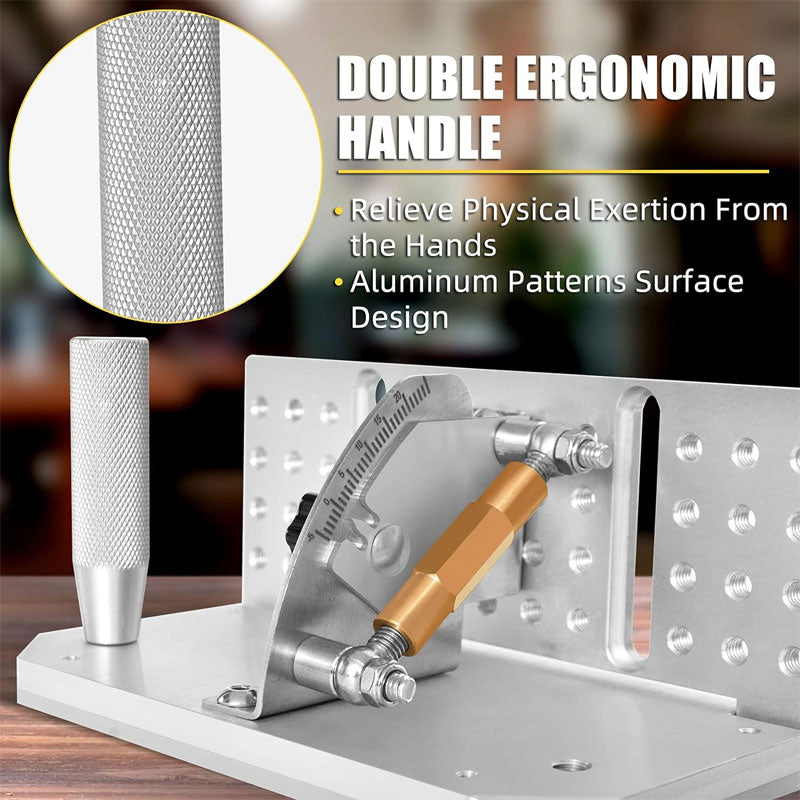

2. The aluminum alloy handle is engraved with an aluminum pattern that reduces the physical strain on the owner's hands

(muscle tension, vibration loads on tendons and joints).

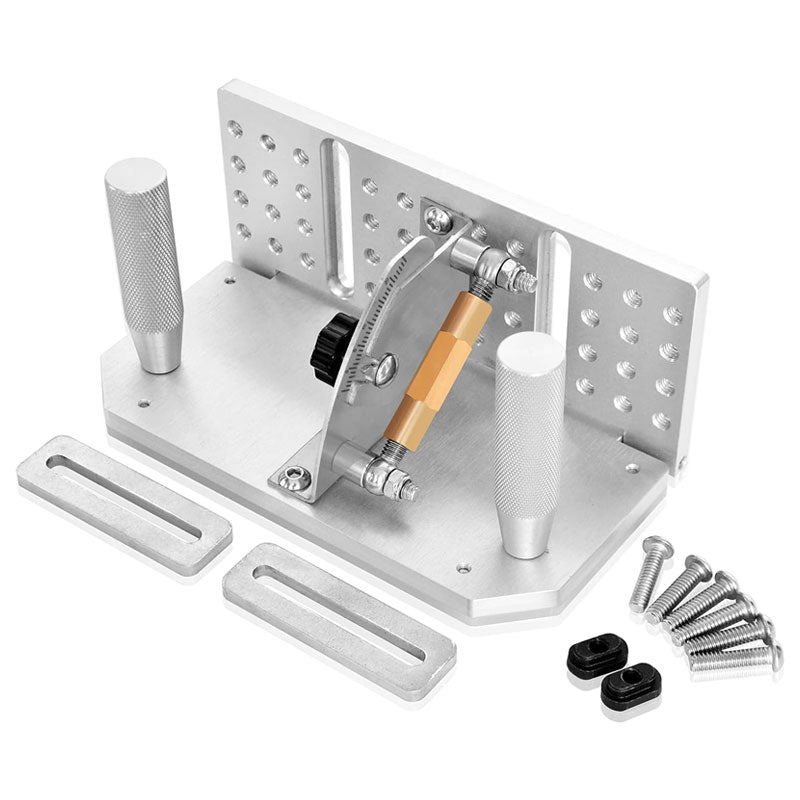

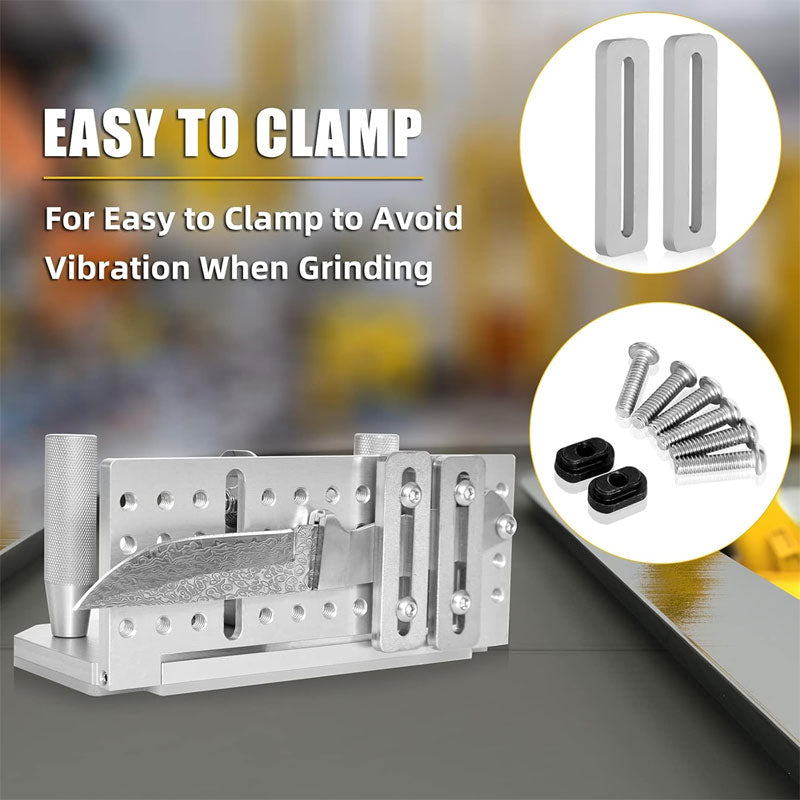

3. It has 44 threaded mounting holes (1/4-20 UNC) and 6 additional bolts to attach your knives, 2 galvanized rectangular clamps and bolts can be used to secure the knives at any height, suitable for many different knife models.

Using 2 clamps instead of bolts to clamp the blade firmly to the bevel clamp, it will get a more secure grip and accept blades up to 11mm (0.4”) thick.

Scenario shows

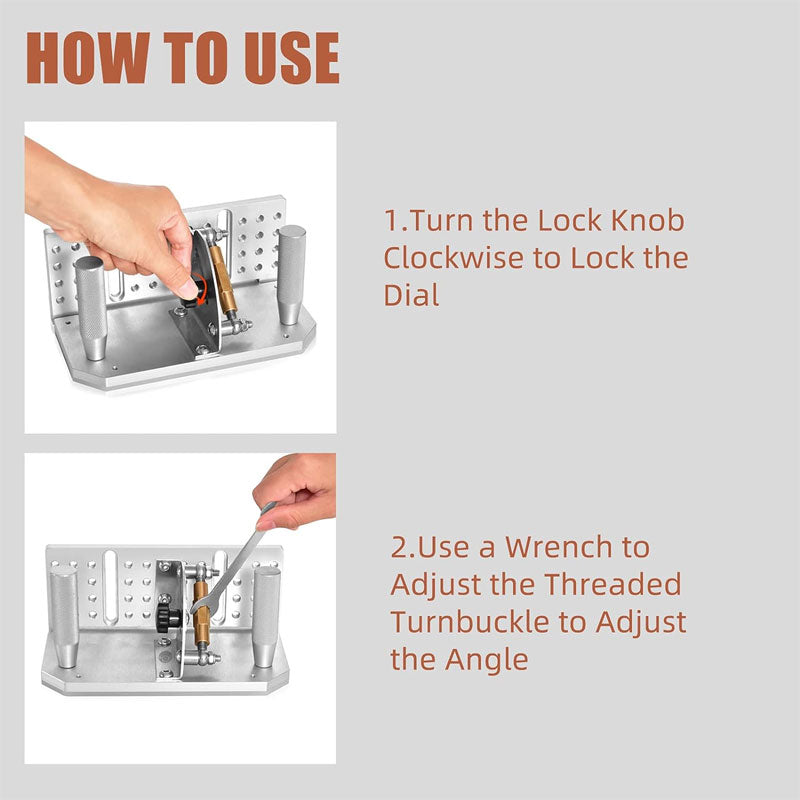

Grinding Jig Application Method.
